Description

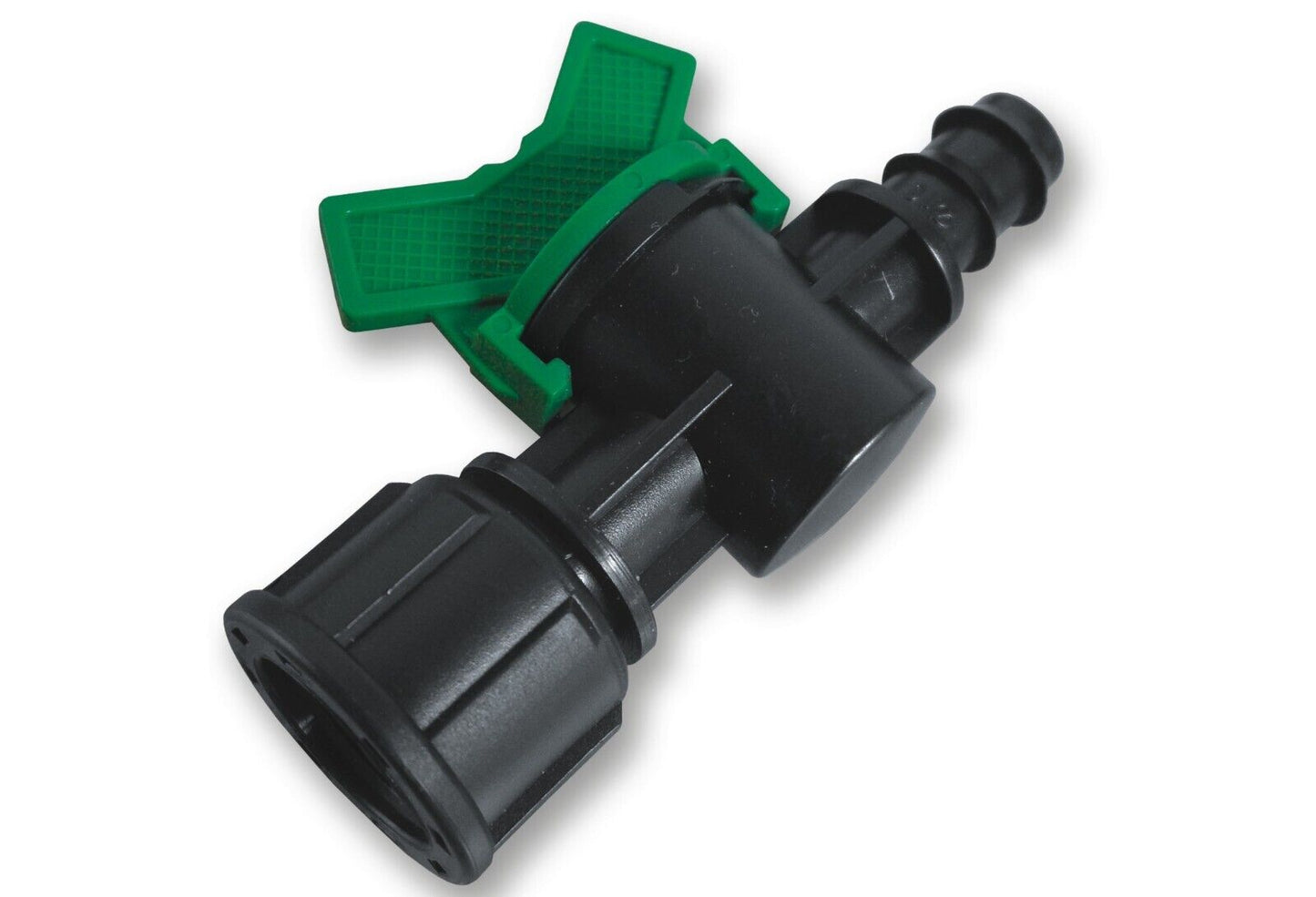

This valve features a 3/4" BSP female inlet and a 3/4" (19 mm) barbed hosetail outlet, providing a secure transition from threaded fittings to flexible irrigation tubing. Its simple quarter-turn handle delivers precise on/off control, making it easy to start, stop or throttle water flow as required.
Moulded from UV-stabilised, impact-resistant plastic, the valve resists cracking, fading and temperature extremes for reliable outdoor performance. The barbed hosetail grips tubing firmly (simply push the pipe onto the barb until it locks in place), while the BSP thread screws into any standard 3/4" fitting without the need for PTFE tape, thanks to its built-in sealing washer.
Ideal for garden irrigation, greenhouse systems or any low-pressure watering network, this valve combines durability and user-friendly operation to give you complete control over your water distribution.
- Connections: 3/4" BSP female inlet → 3/4" (19 mm) barbed hosetail outlet
- Operation: Quarter-turn handle for fast, precise flow control
- Material: UV-stabilised, impact-resistant plastic
- Installation: Push-fit barb and screw-in BSP thread: no additional sealant required
- Applications: Garden watering, greenhouse lines and low-pressure irrigation systems
Product information & technical details
| SKU | VALVE20B34BSPF001 |
|---|---|
| Product type | |
| BSP thread size | 3/4" |
| Thread gender | Female |
| Barb size | 19mm (3/4") |
|---|---|
| Colour | Black |
| Material | Plastic |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
