Description
Water the lawn. Choose the arc.

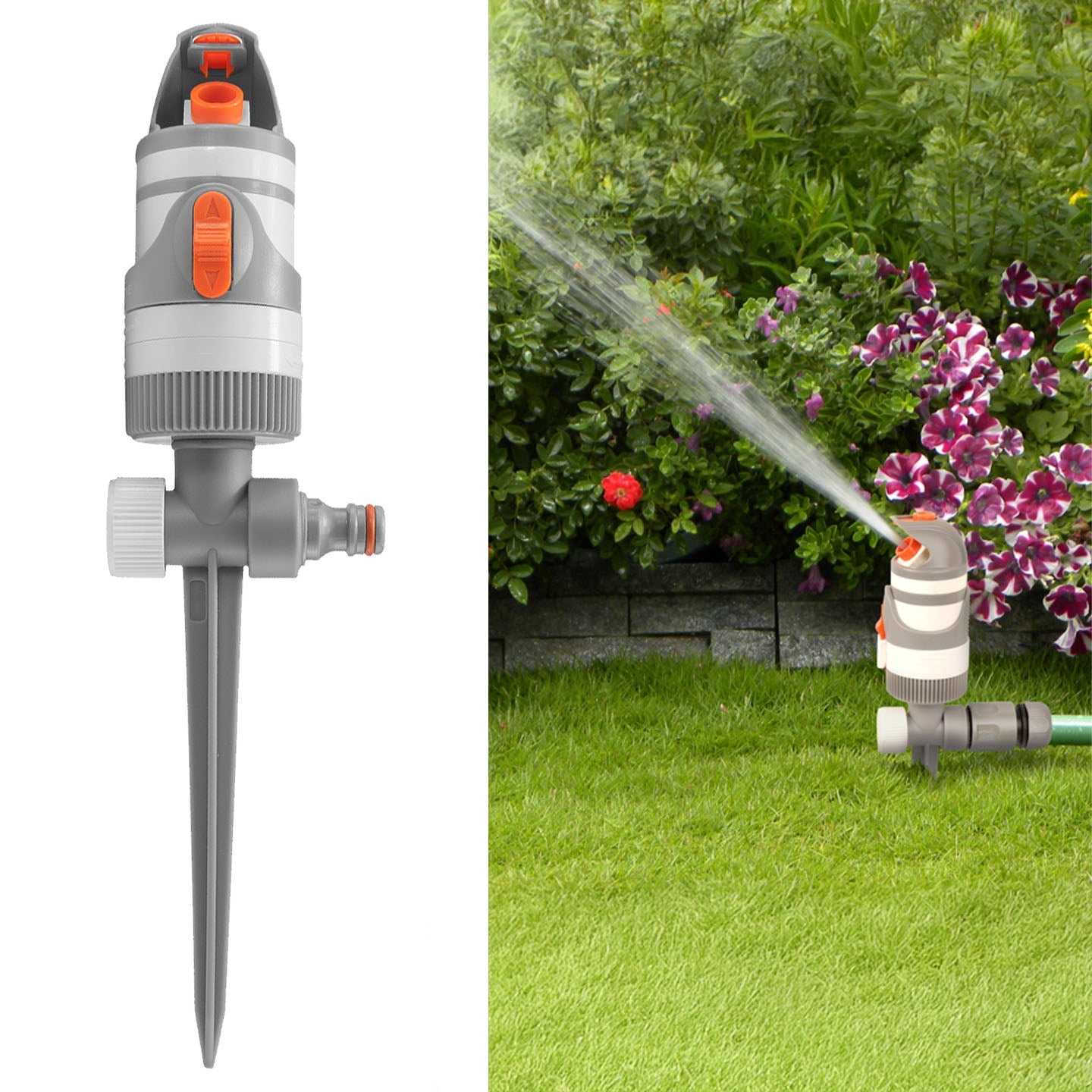

A full circle for an open lawn, or a smaller sector beside a border: this Bradas WHITE LINE gear-drive sprinkler lets you adjust the sweep to the space you want to water.
Choose a concentrated or dispersed stream, set the spray distance and position the plastic spike in the soil. The hose stays on the ground while the rotating head waters the selected area.
One sprinkler supplied. Connect it to your garden hose using a compatible female quick connector; hose and hose-end fitting are sold separately.
Three adjustments, one watering area
Pattern changes the stream: select concentrated or dispersed watering to suit the area.

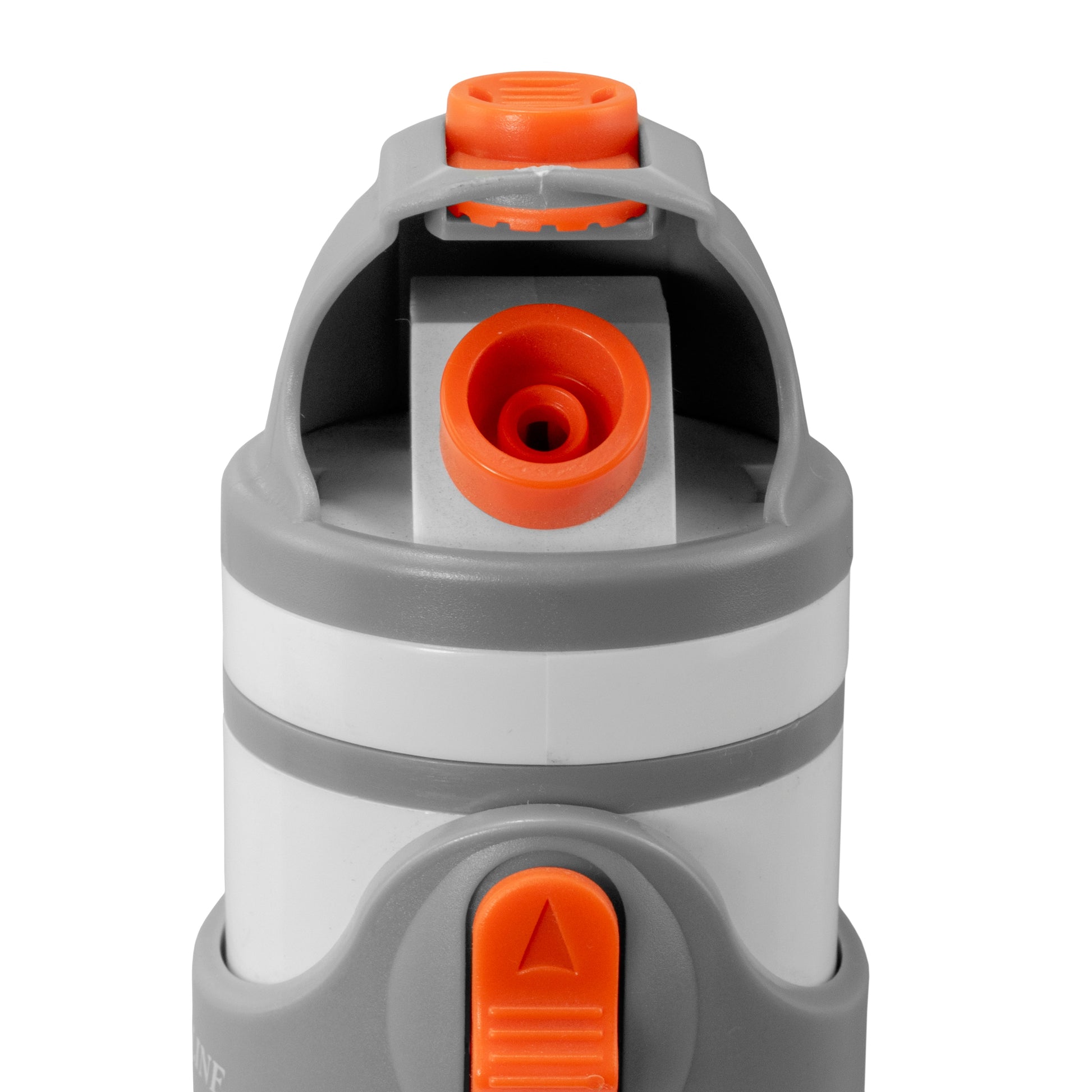

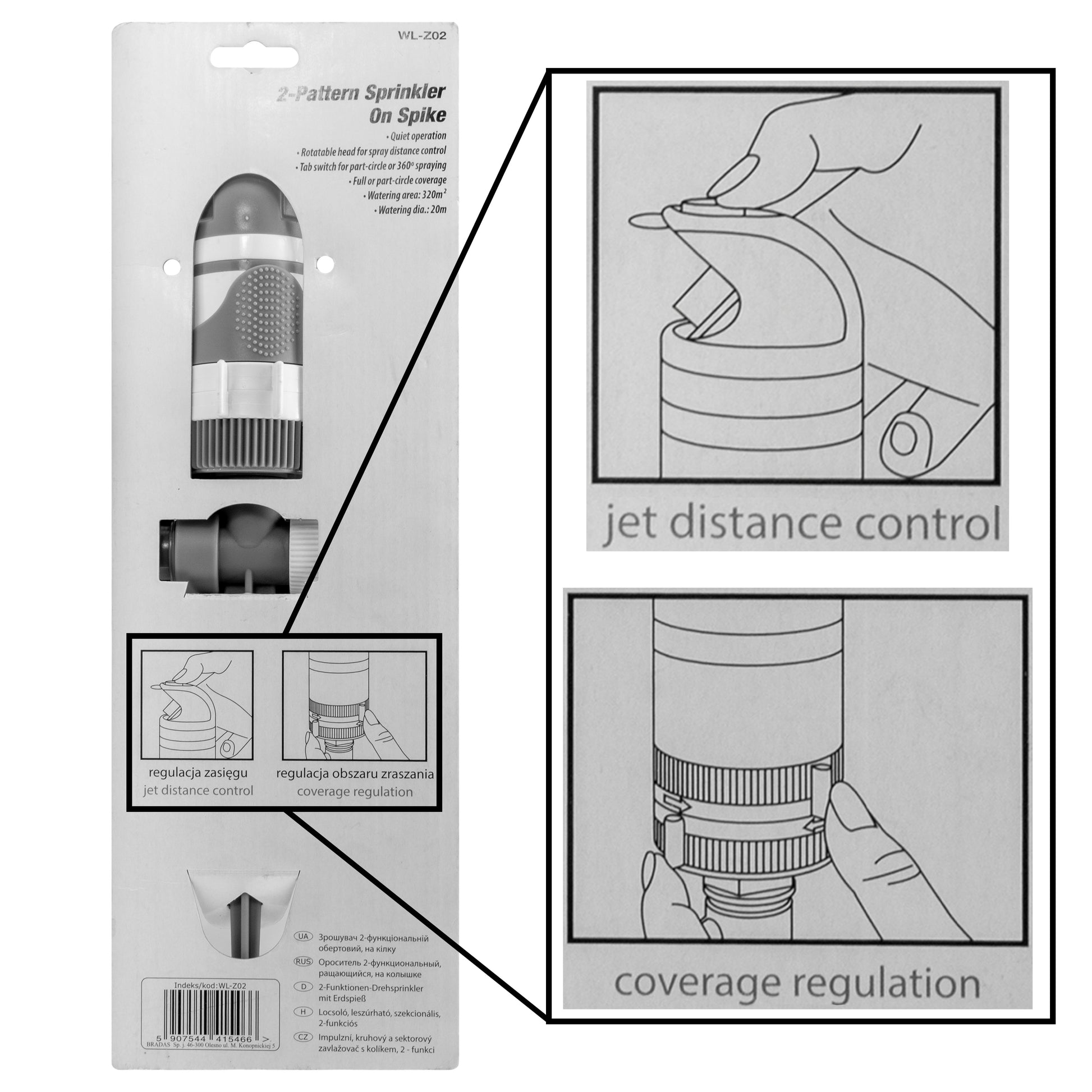

Distance controls the throw using the adjustable head. Start with a shorter reach and check where the water lands.

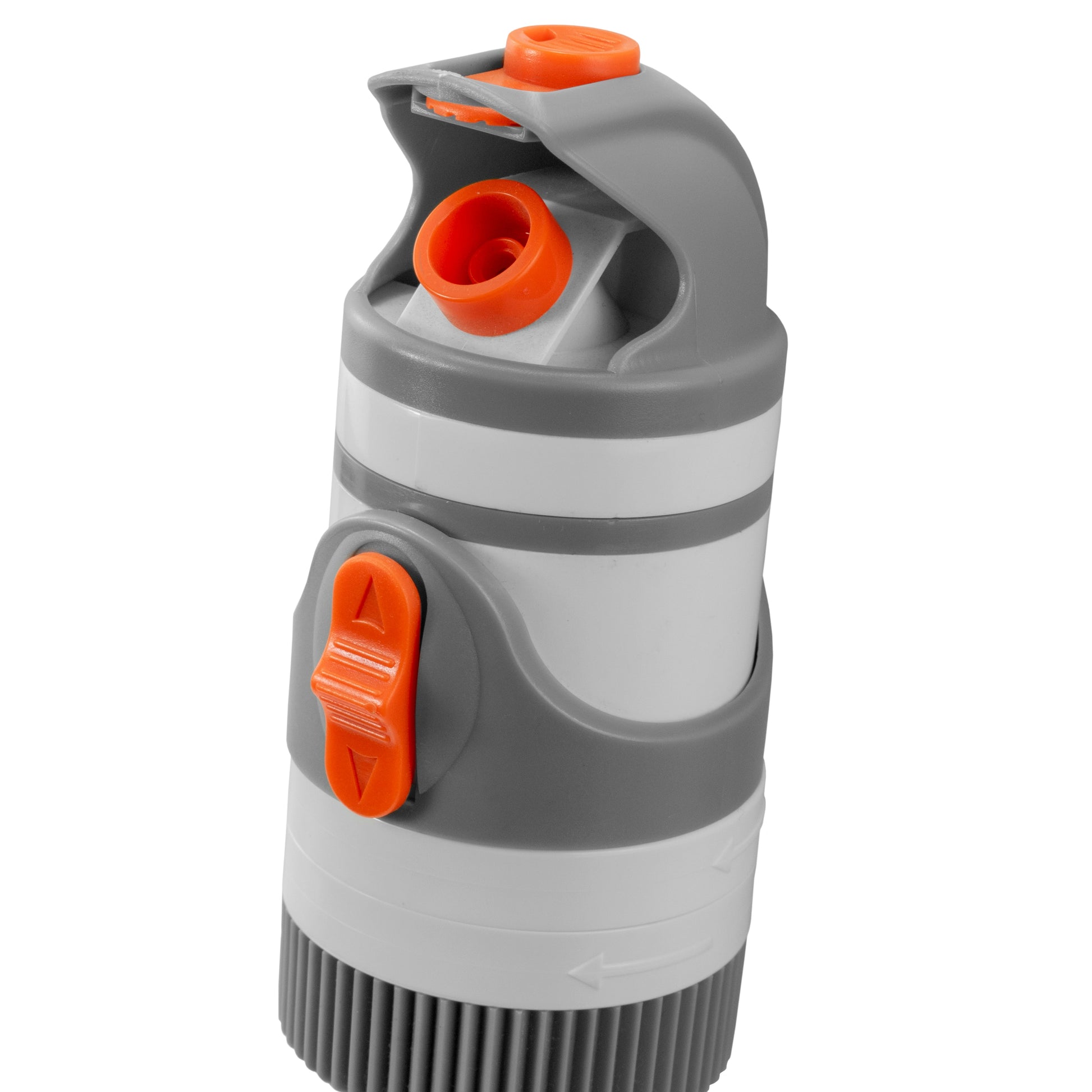

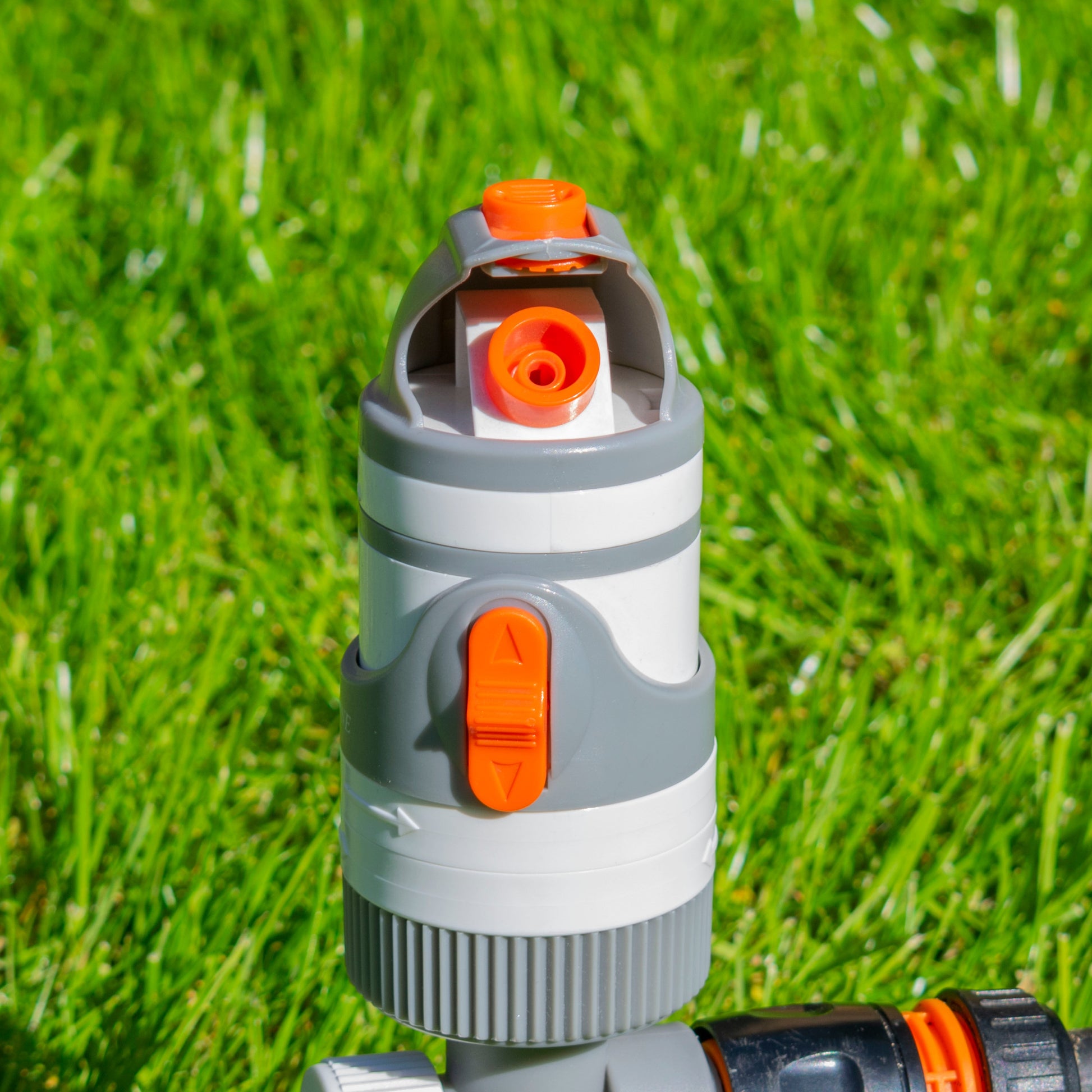

Arc controls the sweep. Set a part-circle sector or use the manual switch for full-circle watering. The adjustable range is 10°-360°.
The gear-drive mechanism runs quietly. At the 3-bar reference pressure, the stated performance is a 20m watering diameter and 13.4 litres per minute. Your actual reach depends on available pressure and flow, hose losses, the settings and wind.
Set up, check and adjust

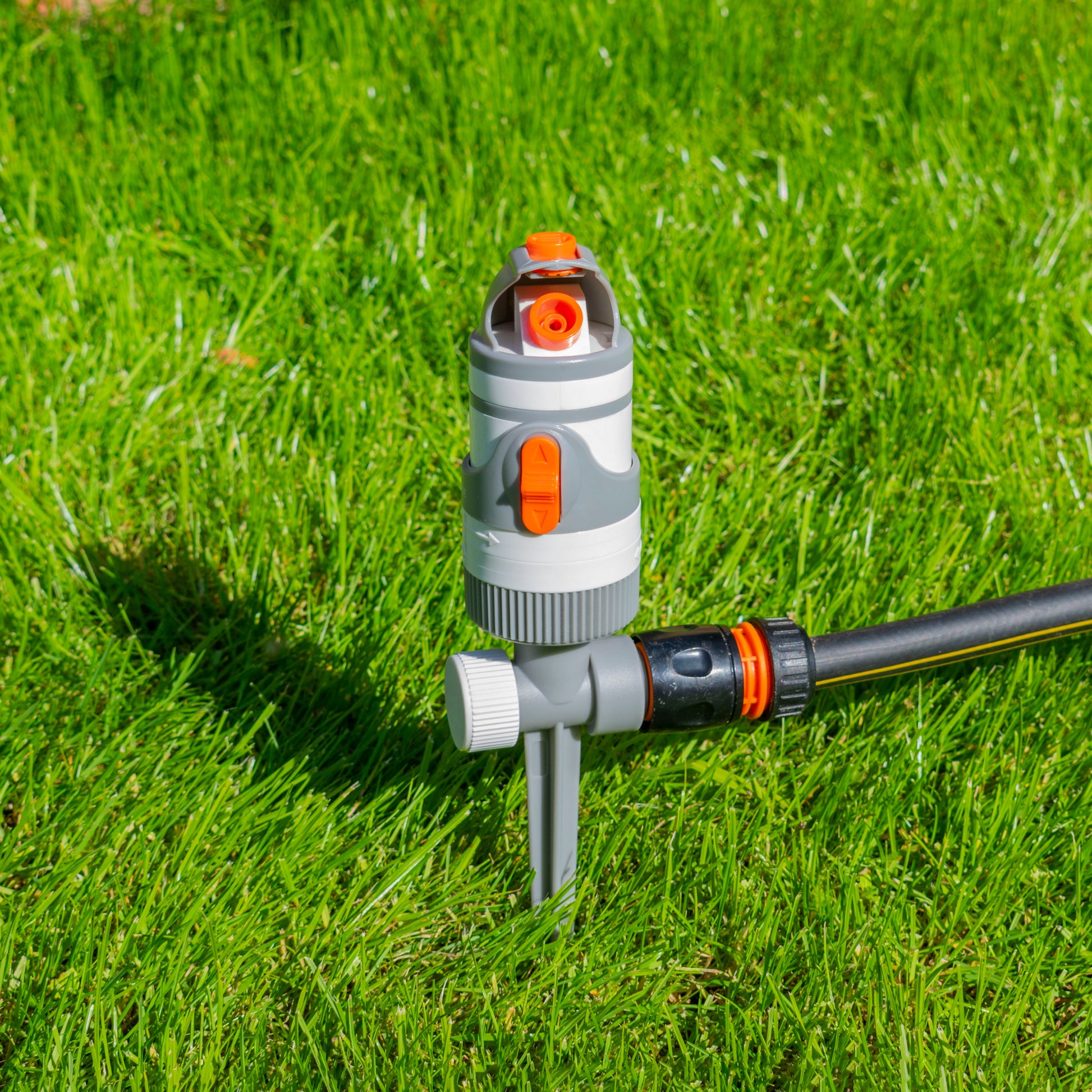

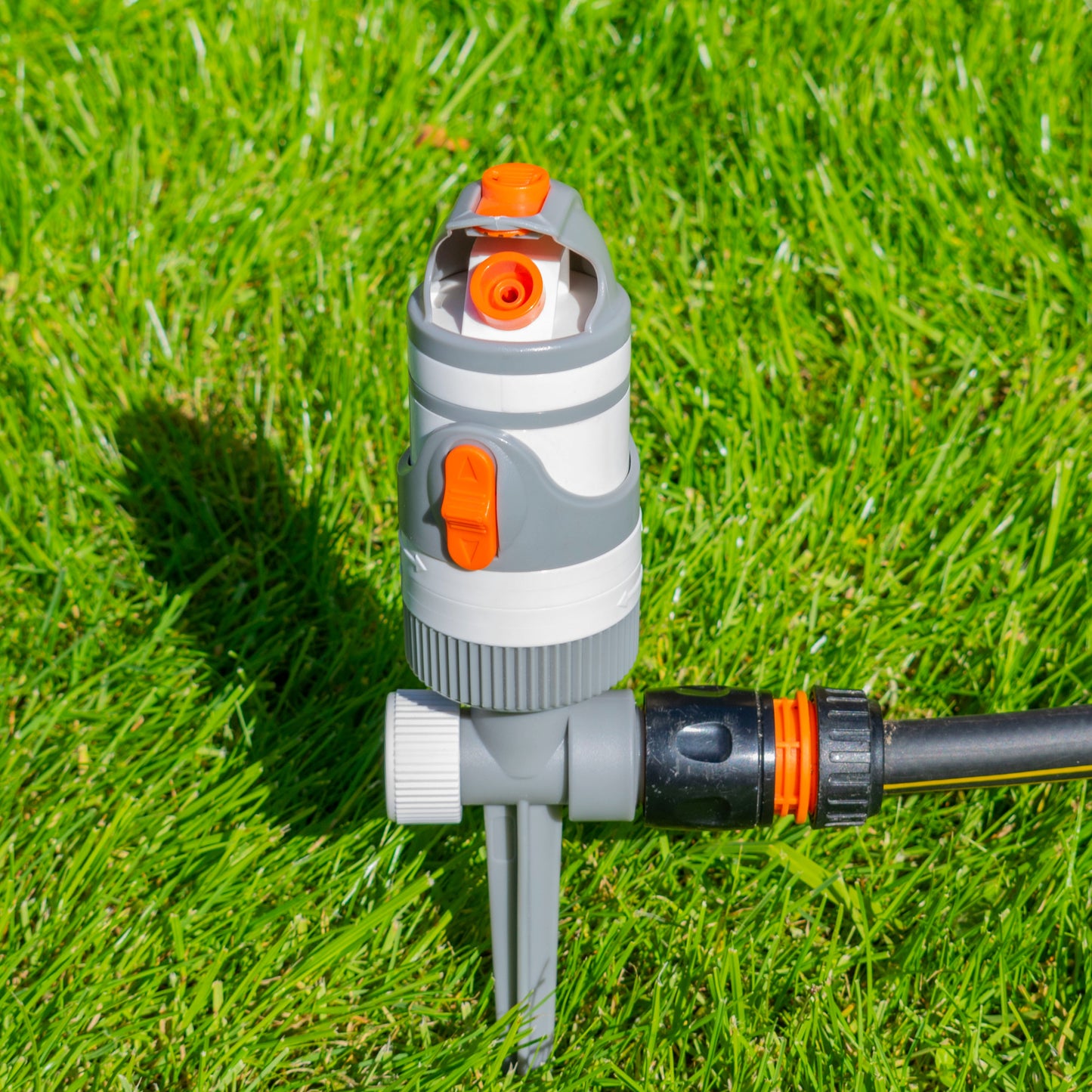

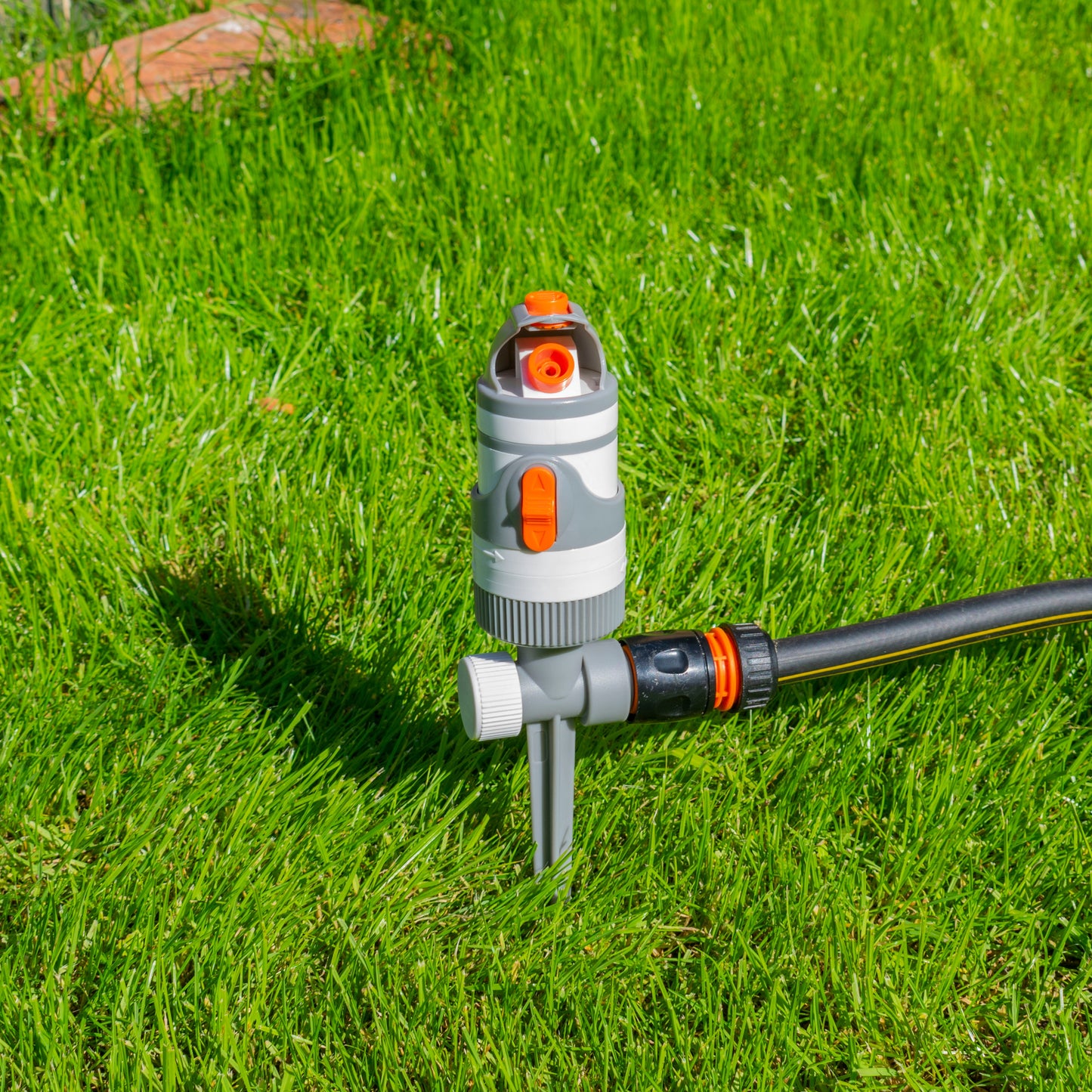

Position the spike
Choose a spot where the head can rotate freely. Insert the spike into suitable soil and leave the hose relaxed around the base.
Connect the supply
With the water off, attach a compatible female hose socket to the sprinkler's male quick-connect inlet. The socket must also suit your hose.
Watch the first sweep
Turn on the water gradually, check the connection and adjust the pattern, distance and arc. Reposition if water is landing beyond the planting or lawn.
Choosing and using your sprinkler
Does two-pattern mean it waters two separate zones?
No. It means two stream options: concentrated and dispersed. The arc setting controls how far the head sweeps around the same sprinkler position.
Will it reach 20 metres from the sprinkler?
The stated 20m figure is the full watering diameter at 3 bar, not a 20m radius. Actual reach varies with your supply, hose and settings.
Can I connect more than one sprinkler?
The base supports series connection. Each additional sprinkler needs connecting hose and sufficient supply flow and pressure; adding units can reduce their reach. No extra hose or sprinklers are included.
Can I put it on a patio?
The spike is designed to stand in soil. For a hard surface without a suitable place to insert the spike, choose a sprinkler with a freestanding base instead.
Product information & technical details
| SKU | WL-Z02-001 |
|---|---|
| Product type | |
| Colour | Grey, White, Orange |
| Material | Plastic |
| Brand / range | Bradas WHITE LINE |
| Mechanism | Gear drive |
| Spray patterns | Concentrated and dispersed stream |
|---|---|
| Watering arc | 10°-360°, part or full circle |

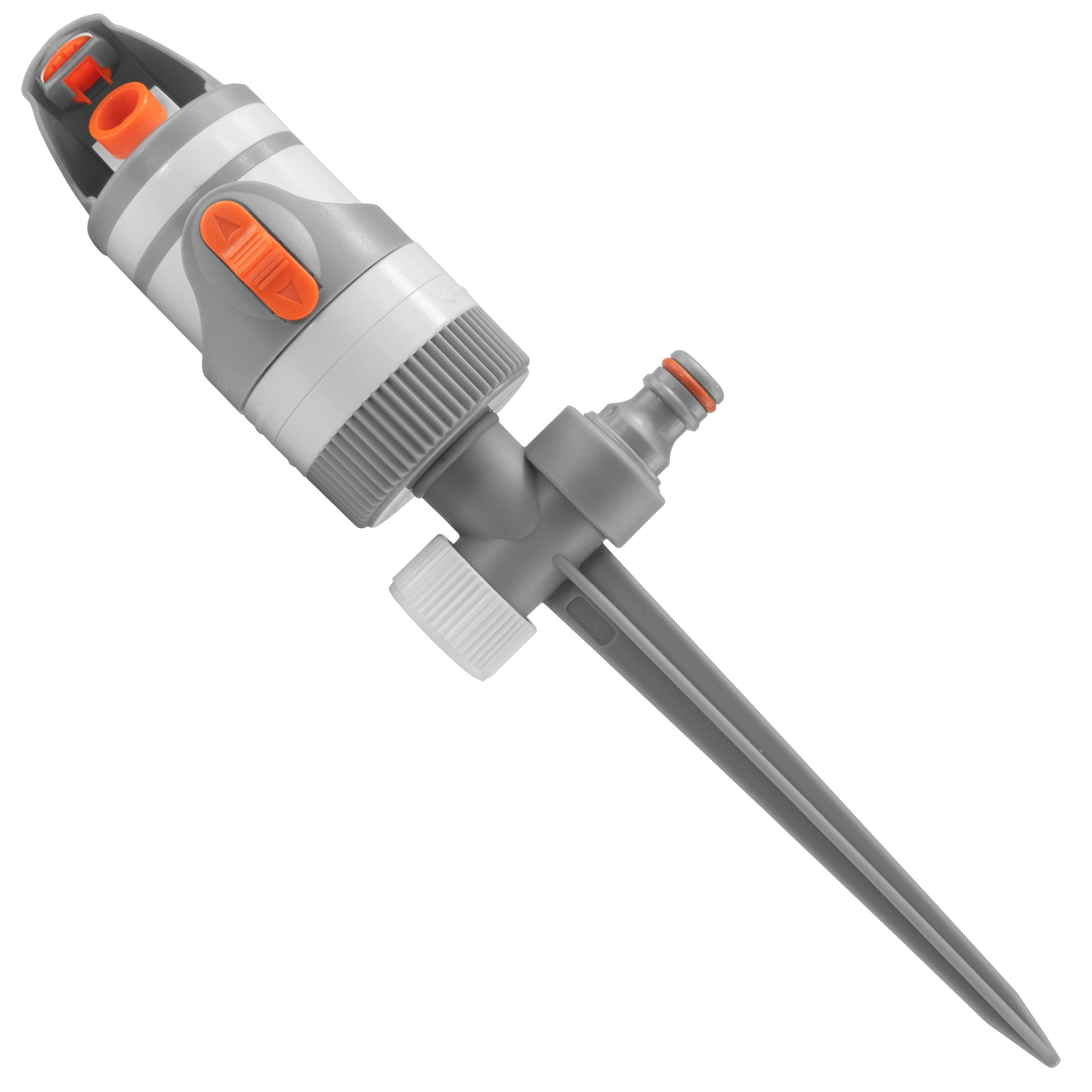

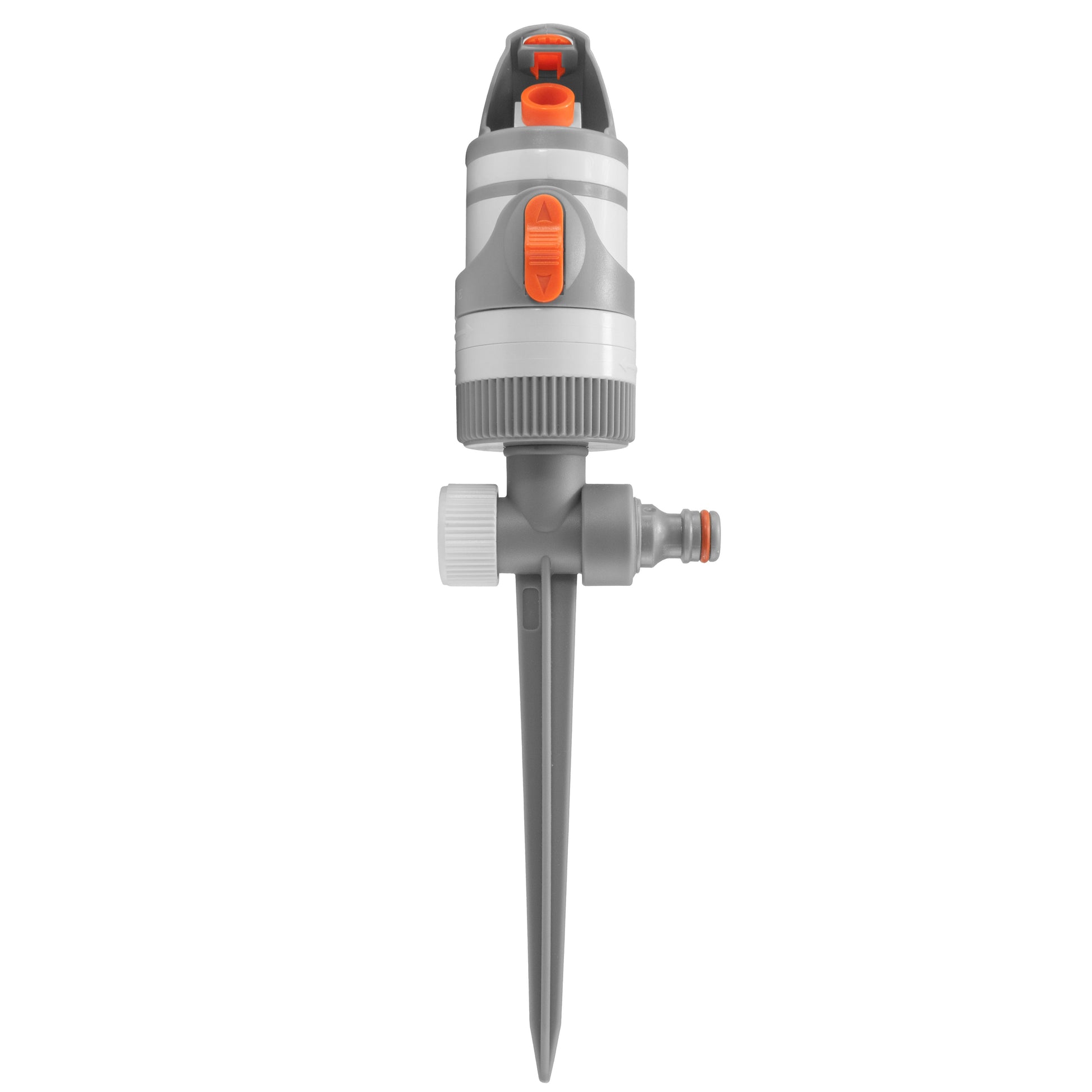

| Mounting | Plastic ground spike |
| Watering diameter at 3 bar | 20m (reference conditions) |
| Flow at 3 bar | 13.4 litres/minute (reference conditions) |

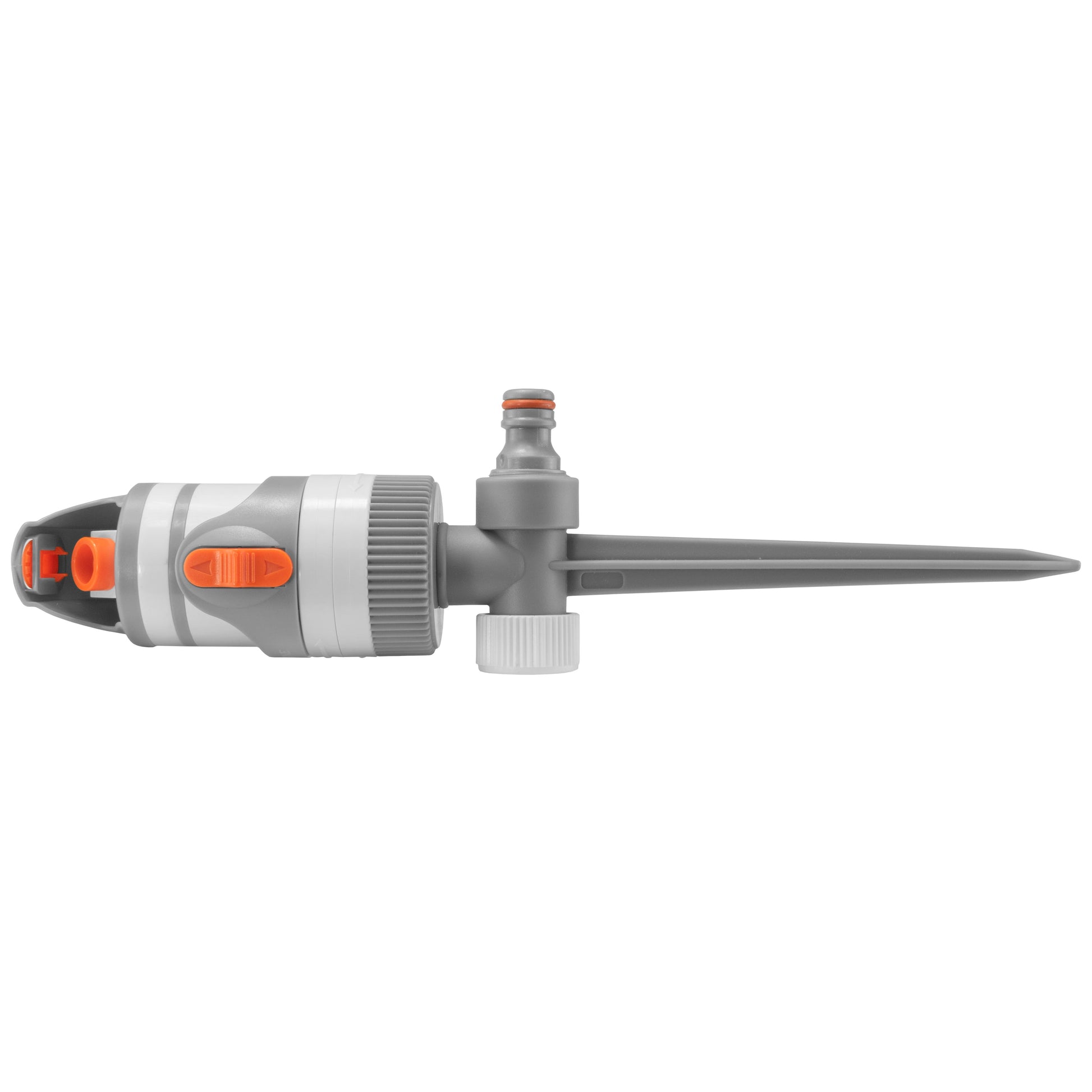

| Supply connection | Male garden quick-connect inlet |
