Description
A threaded connection for your 19mm pond hose
Bring suitable 19mm-bore hose to equipment with a matching ¾-inch BSP male connection.

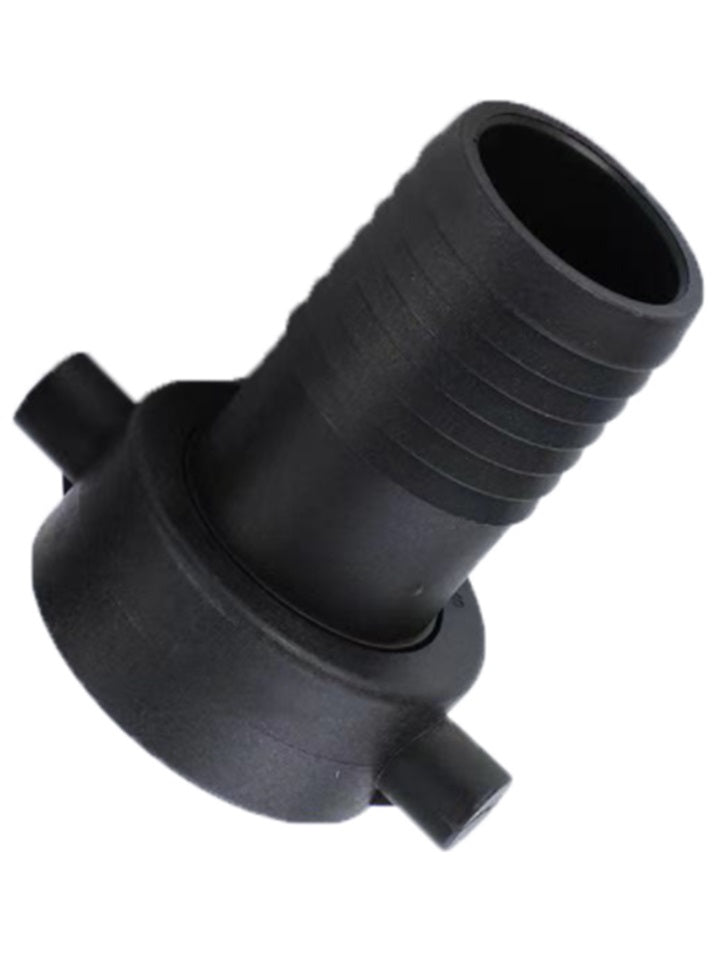

This black plastic adapter has a female swivel collar at one end and a single-size ribbed hosetail at the other. Match the thread, hose and sealing arrangement before fitting.
One adapter supplied. Hose and clips are separate.
Check the two ends before replacing a fitting
The thread and hose use different size conventions.
Read the equipment thread
The collar needs a compatible ¾-inch BSP male fitting. It will not screw into a female port. Check which sealing arrangement the equipment requires rather than choosing from appearance alone.
Match the hose bore
The barb is for suitable 19mm internal-bore hose. Its ¾-inch hose description does not mean the threaded collar has the same measured opening. Check the hose wall profile and seating requirements.
Leave fitting access
Allow space to turn the collar and secure the hose. Choose any clip from the hose’s fitted outside diameter and construction, then support the hose so it does not pull sideways on the equipment port.
Set the hose position during assembly
The swivel collar turns to engage the male thread while you assemble the connection. Position the hose run, follow the equipment’s tightening guidance for plastic fittings and keep the final joint accessible.
The connector is supplied on its own. Select any hose, clips and sealing parts for the actual installation, then check the completed joints with water before covering them. The assembly collar should not be treated as a continuously rotating hose joint.
Questions about the 19mm female adapter
Does this screw into a female pump port?
No. This adapter has a female threaded collar, which screws onto a compatible ¾-inch BSP male connection. A pump or filter with a female port needs a different adapter. Read the equipment’s thread specification and sealing requirements before ordering; the hose’s inch size on its own does not identify the threaded connection.
Is this the same as a garden hose quick connector?
No. The hose pushes directly over the ribbed hosetail and must be secured appropriately for its construction and use. There is no click-on quick-release socket. The other end is a ¾-inch BSP female threaded collar. Choose this arrangement where the equipment and hose require those connections rather than a snap-on garden hose coupling.
Will all ¾-inch hoses fit the barb?
The hosetail is intended for suitable 19mm internal-bore hose, commonly described as ¾-inch. Wall thickness, stiffness and profile also affect the fit and securing method. Check the actual hose and equipment requirements before assembly. Any clip needs to match the fitted outside diameter, which is larger than the internal bore and varies between hoses.
Can the hose swivel while the system is running?
The swivel collar is an assembly feature for engaging the threaded connection; it is not a stated rating for continuous rotation in service. Set the hose position during fitting, support the run and keep twisting or side loads off the adapter. Inspect both the threaded joint and the hose end with water before putting them out of sight.
Product information & technical details
| SKU | POND19B-34BSPFSTR001 |
|---|---|
| Product type | |
| BSP thread size | 3/4" |
| Thread gender | Female |
| Barb size | 19mm (3/4"), 20mm (3/4") |
| Colour | Black |
| Material | Plastic |
|---|---|
| Connection layout | Straight 19mm hosetail to ¾-inch BSP female thread |
| Collar | Swivel threaded collar for assembly |
| Thread convention | ¾-inch BSP is a nominal pipe-thread size, separate from the 19mm hose bore |
| Contents | One adapter; hose, clips and equipment not included |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
