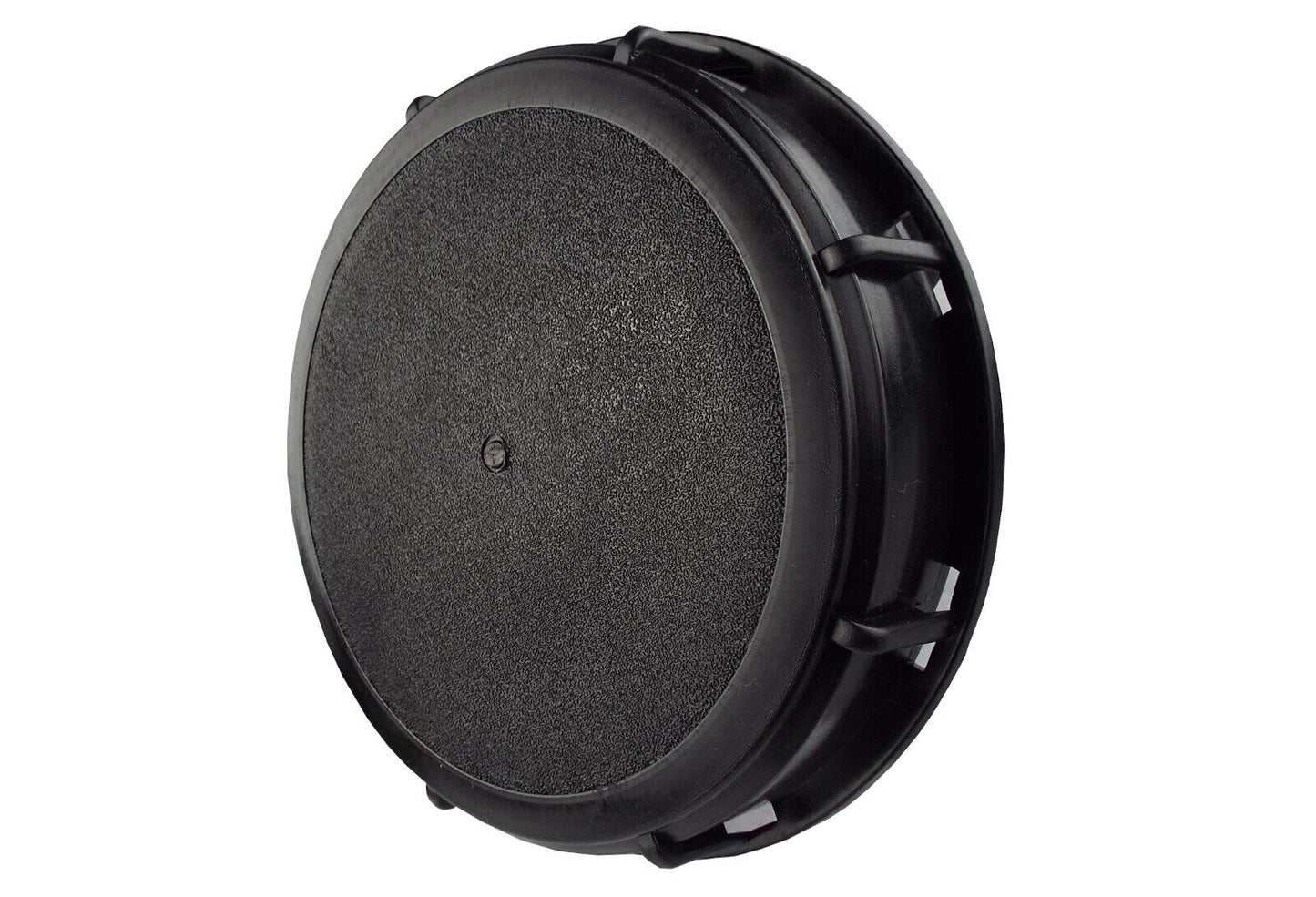

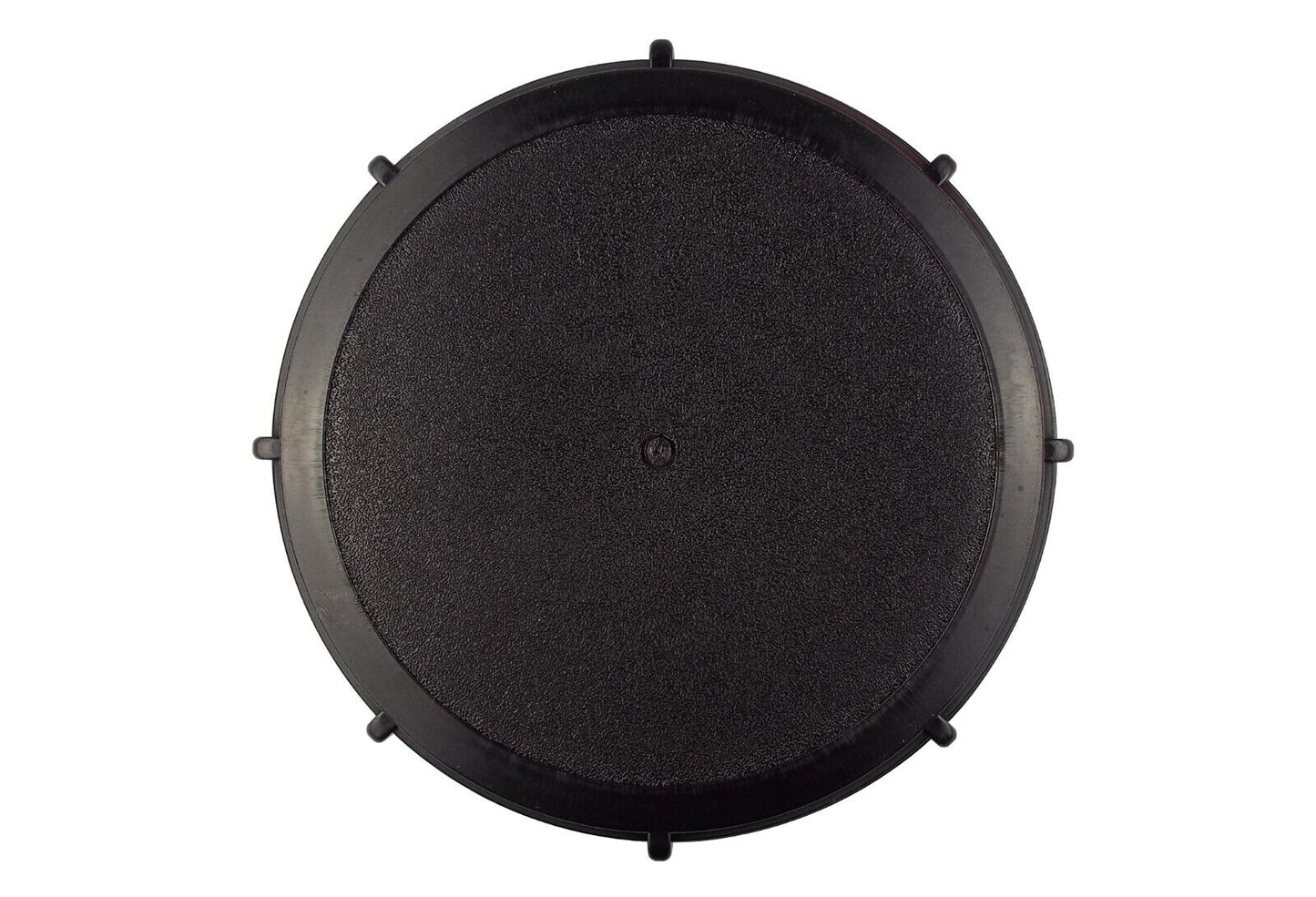

Solid cap

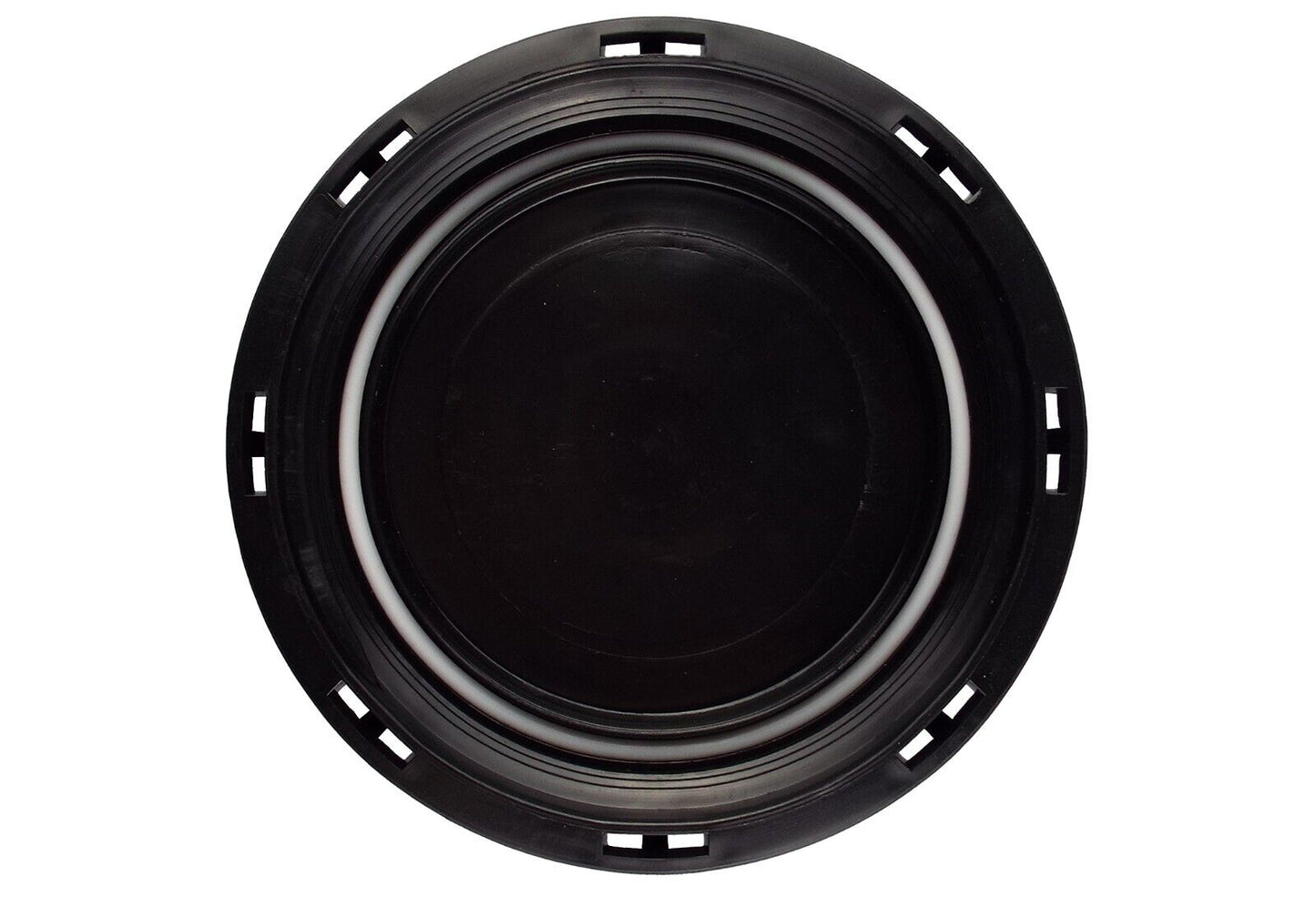

A plain closed top with no centre port or vent. Choose this option when your tank requires an unvented closure. The white inner seal ring meets the tank-neck sealing face.
Description
The right top lid starts with the right opening
Replace the lid on a matching IBC filling neck with a female S160x7 coarse-thread lid. Choose a solid cap, a lid with one vented centre, or a twin-port version with two 2-inch BSP female connections.
All three fit the same thread family, but their centres serve different purposes. Compare the options below, then select the lid your tank and installation require.
One selected lid supplied. The installation illustration shows the twin-port option. Tank, cage and additional fittings are not included.
S160x7Main tank-neck thread
3 optionsChoose the centre style
2-inch BSPFPorted options only
1 lidSelected option supplied

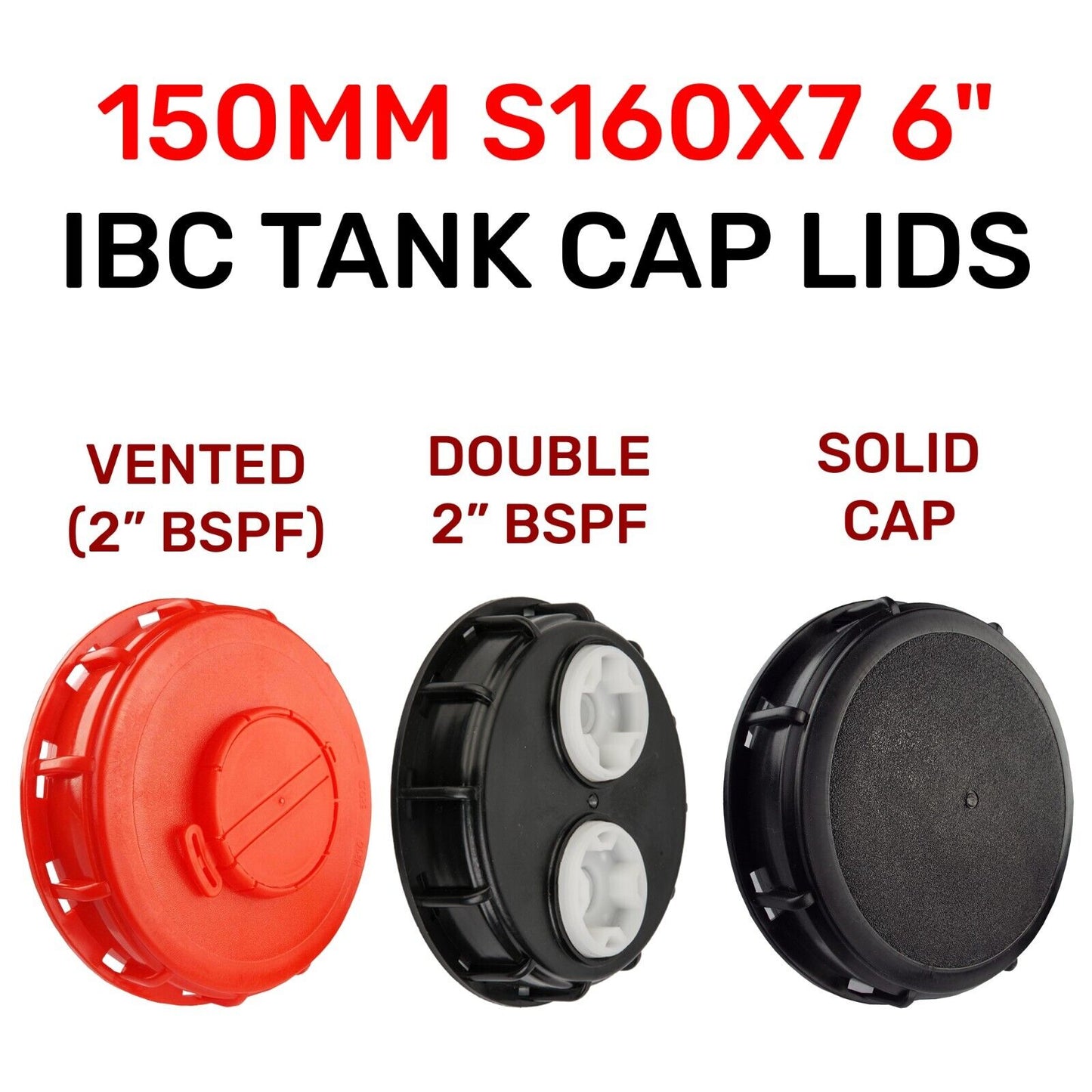

Compare the three lid options

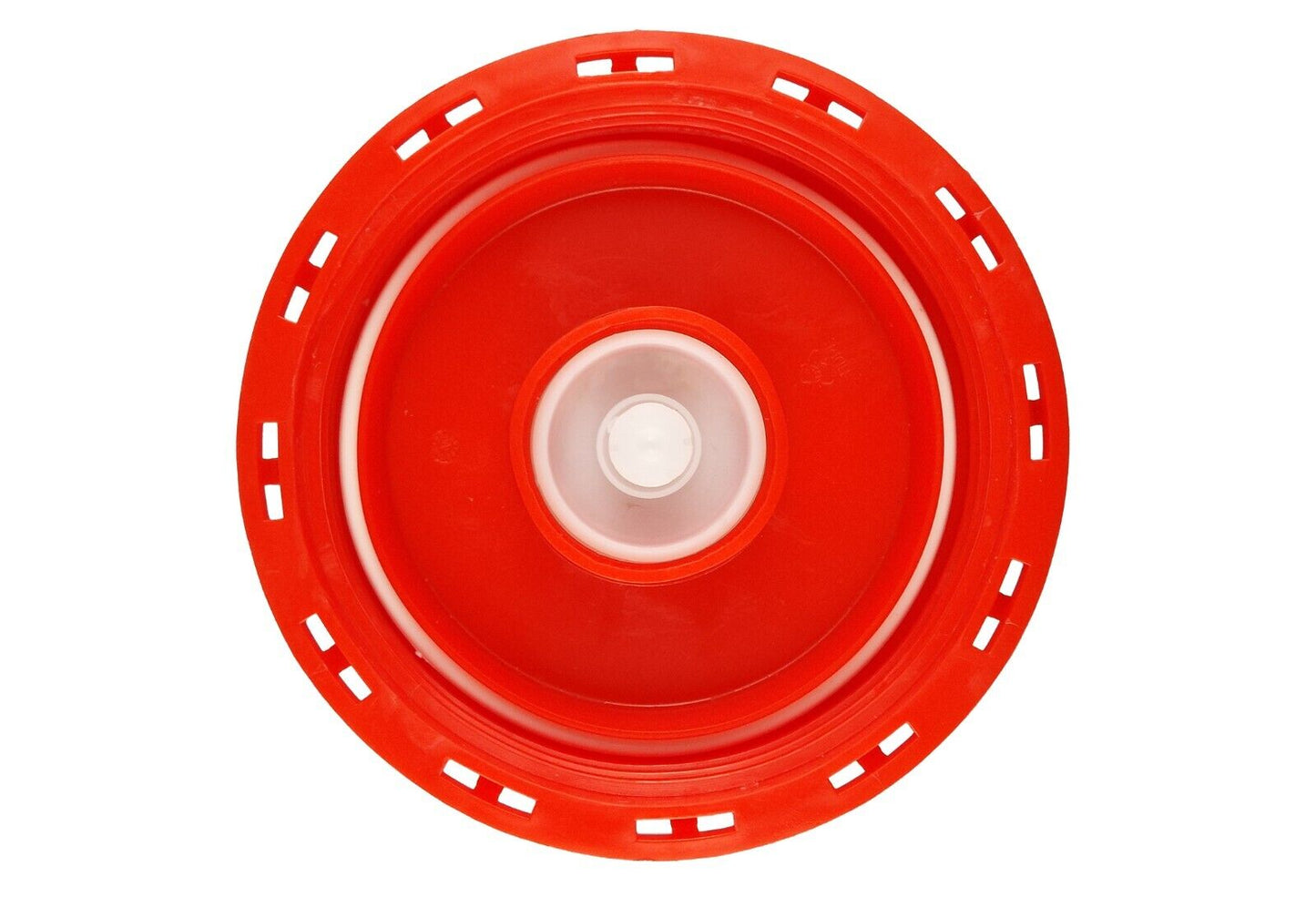

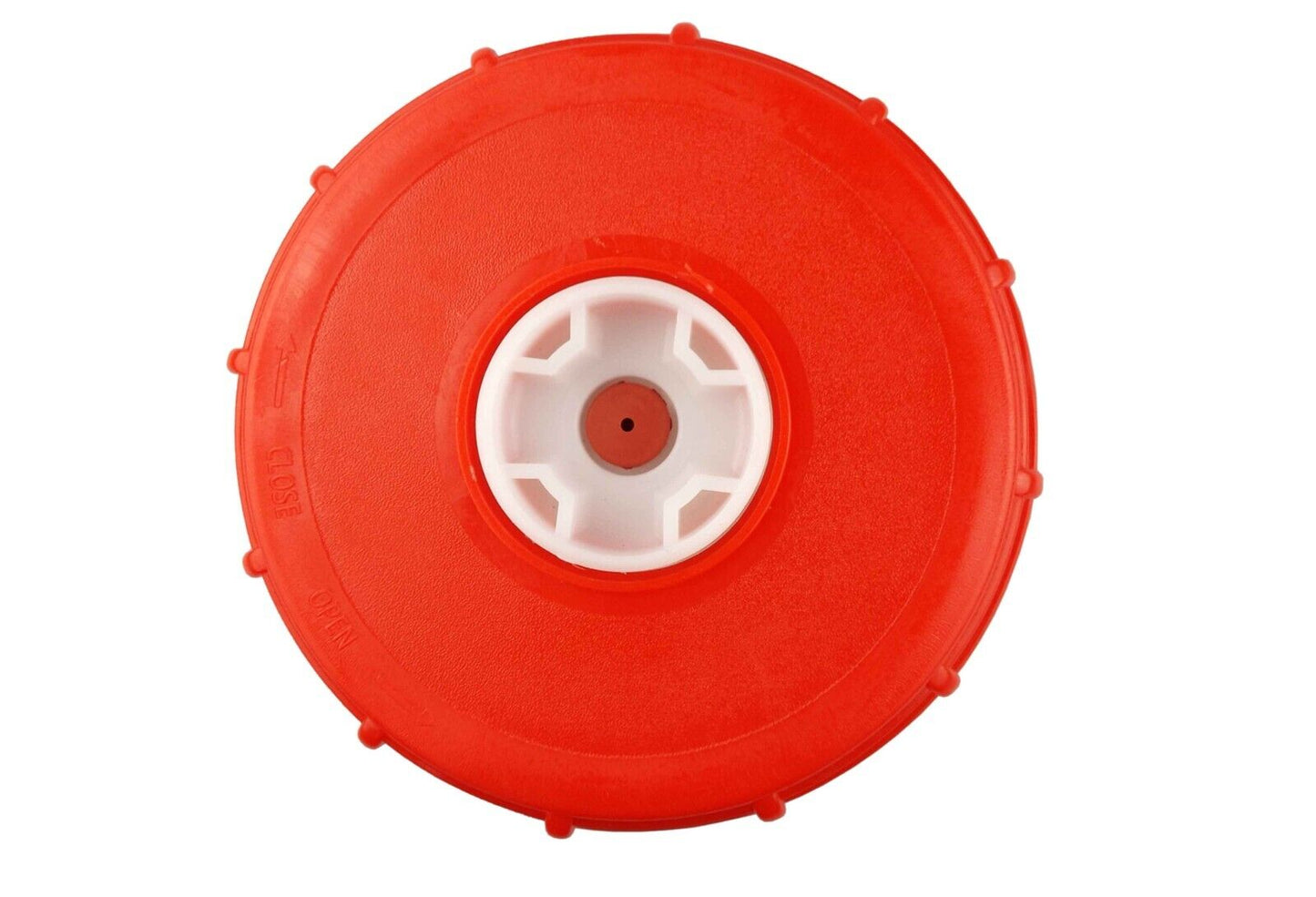

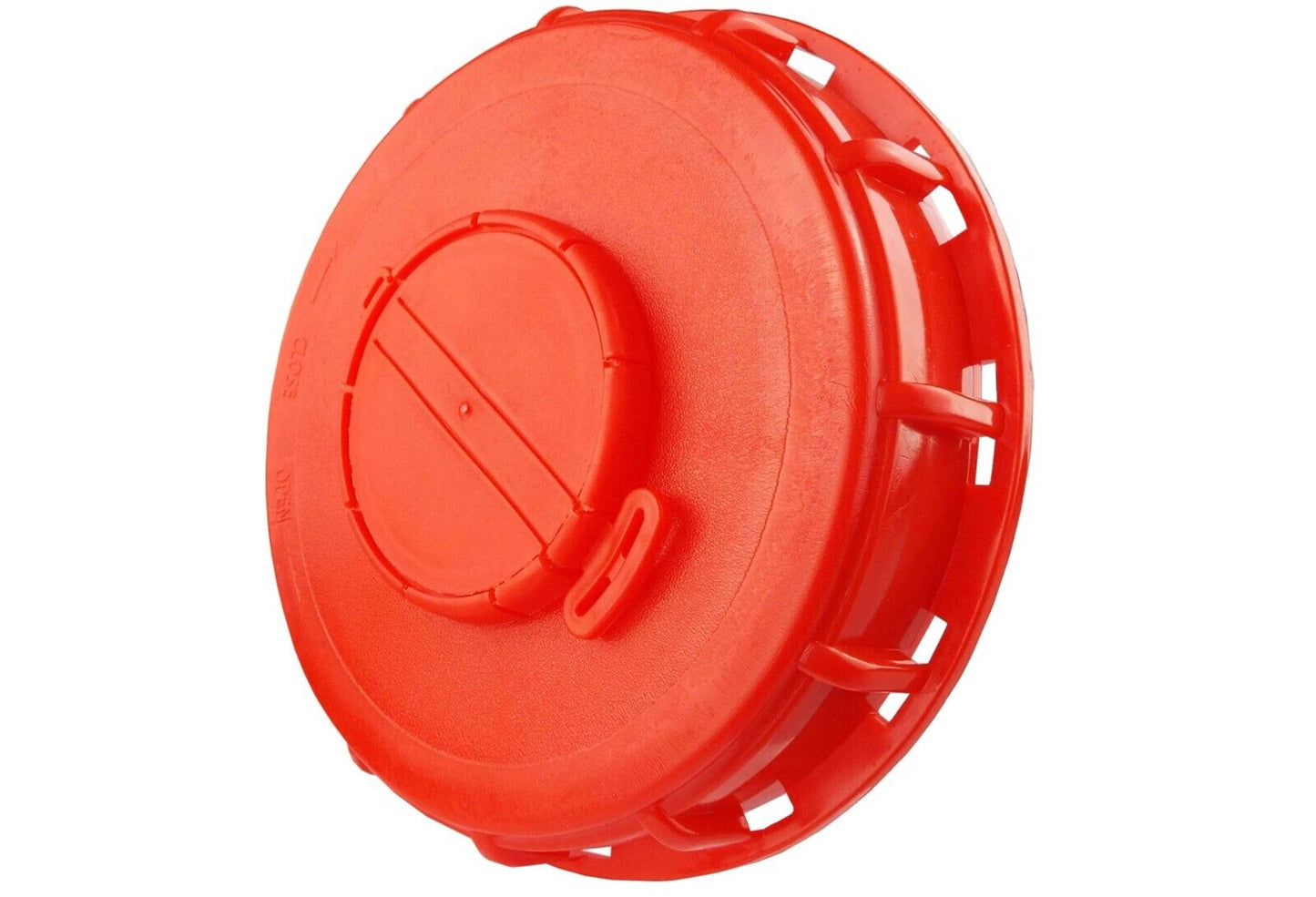

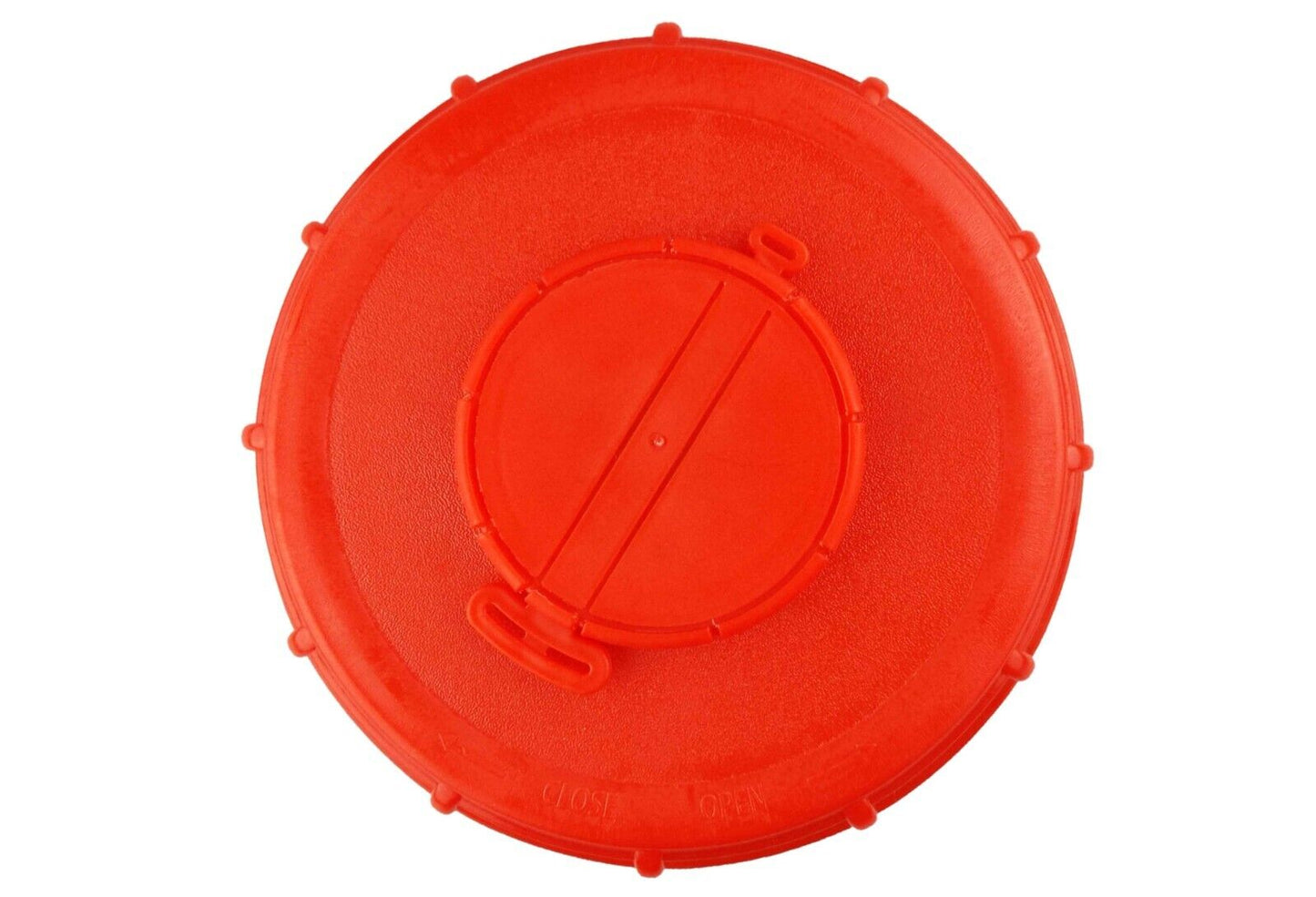

Single vented centre
A removable centre fitting sits in a 2-inch BSP female port. The main S160x7 lid still fits the large filling neck. Supplied in red, blue or black according to stock; colour is not selectable.

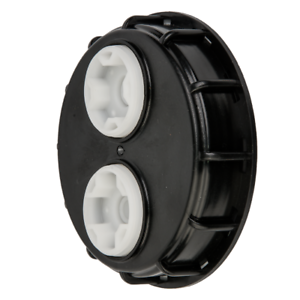

Twin 2-inch BSP ports
Two separate 2-inch BSP female ports with white plugs fitted, as photographed. The ports provide separate connection points; the fitted plugs do not establish an automatic pressure-relief function.
Check the neck thread, then the centre fitting

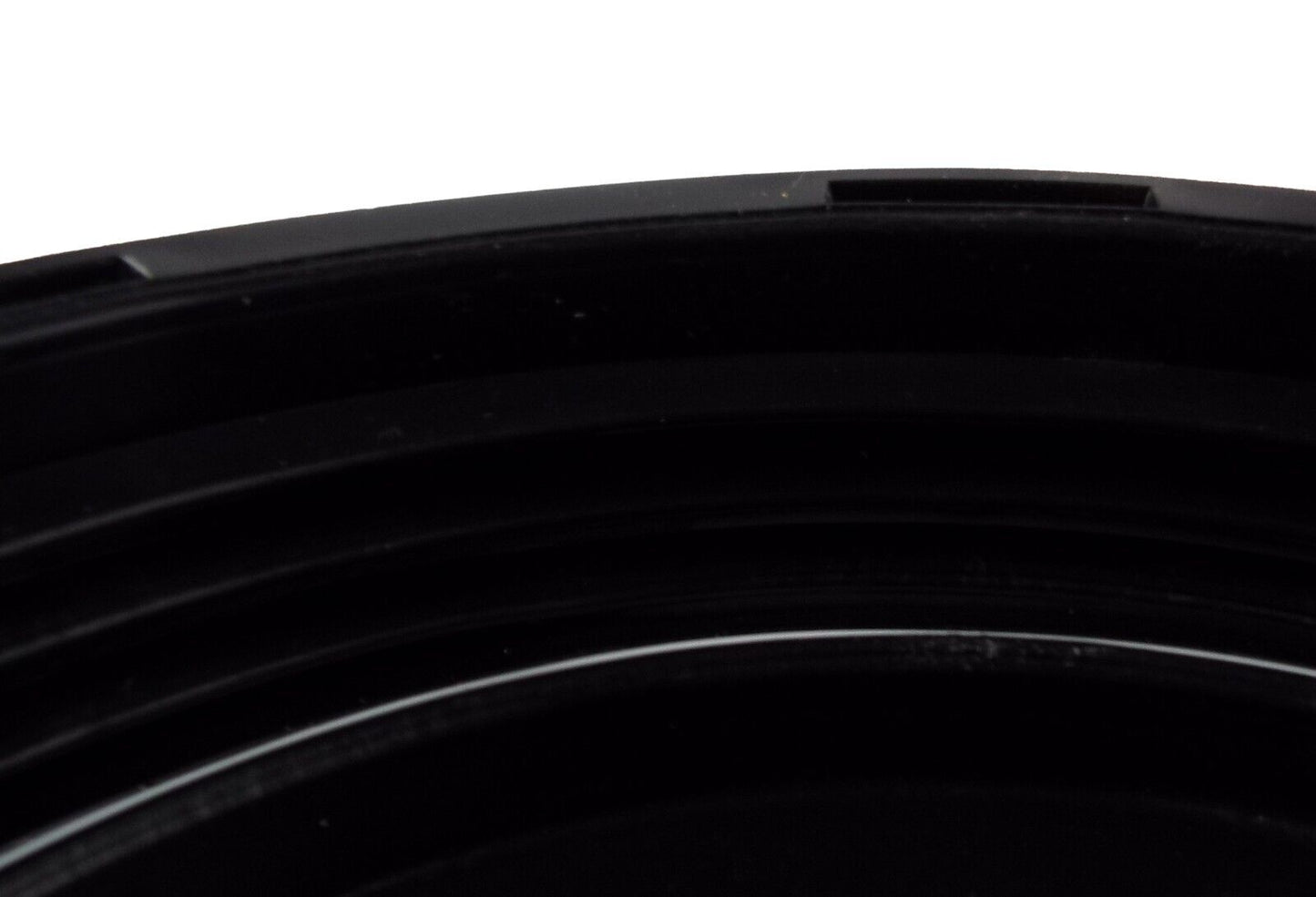

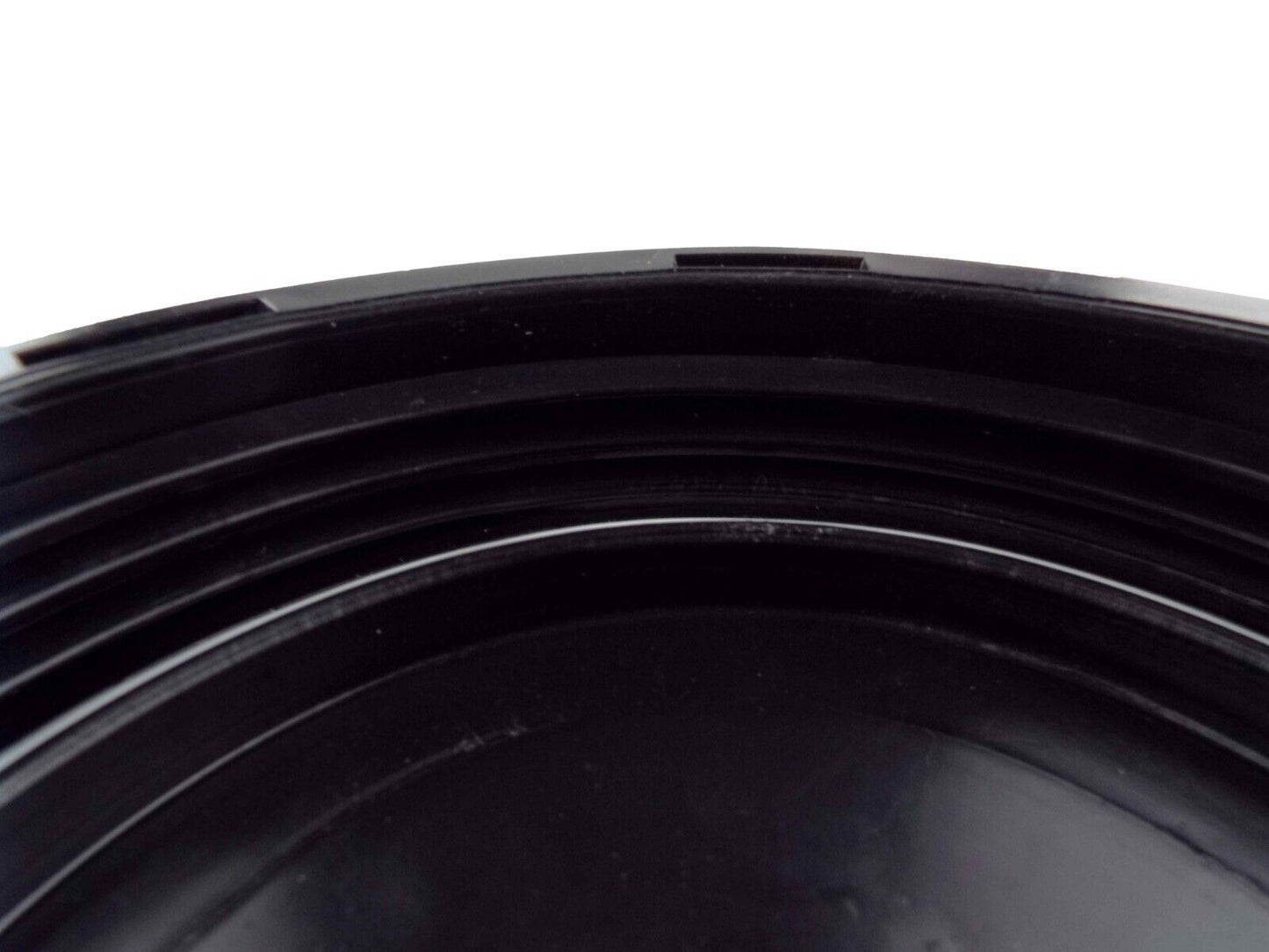

The main closure is commonly called a 150mm, 155mm or 6-inch IBC top lid. These names describe the size family: compare the actual S160x7 thread and sealing face with your existing lid and tank. It is not an S60x6 bottom-outlet fitting.
On the ported versions, the smaller 2-inch BSP female thread is a separate connection from the large tank-neck thread. BSP is a nominal pipe size, not a direct 50.8mm measurement across the thread. Check the mating fitting and required seal before choosing accessories.
Keep threads and sealing surfaces clean, inspect the seal and lid for damage, and start the thread squarely. Follow the tank's instructions for fitting, access and the type of closure needed for its contents.
Choosing your IBC lid
Does the double-port lid automatically vent the tank?
Two threaded ports do not, by themselves, establish automatic venting or pressure relief. The twin-port lid is shown with both white plugs fitted. Use the closure and any separate vent equipment specified for your tank and its intended service.
Will I receive all three lids?
No. Each unit is one lid in the option you select. The photographs compare the range. Only the single-centre vented option has stock-dependent red, blue or black colour; it is not a colour selector.
Product information & technical details
| SKU | IBCLID155MM001[#ML] |
|---|---|
| Product type | |
| BSP thread size | 2" |
| Thread gender | Female |
| IBC thread size | S160X7 (6") |
| Colour | Black, Red |
|---|---|
| Material | Plastic |
| Centre arrangement | Solid: no port; vented: one 2-inch BSP female centre; twin-port: two 2-inch BSP female ports with plugs. |
| Supply colour | Solid and twin-port: black. Single-centre vented: red, blue or black according to stock; not selectable. |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
