½-inch BSP female
Connects to a matching ½-inch BSP male fitting. The approximately 21mm figure in the option label refers to the male thread's outside diameter.
Description
Bring the connection beyond the tank outlet
This extended IBC adapter connects a matching S60x6 coarse-thread outlet to your choice of ½-inch, ¾-inch or 1-inch BSP female thread. The longer body brings the smaller connection forward, giving you more room to work around the tank's outlet area.
A large ribbed swivel collar helps you fit the adapter without having to turn the whole attached assembly. Choose the BSP size to match the male-threaded fitting you intend to use.
One adapter in the selected size supplied. Tank, existing valve, taps, hoses and other accessories are not included.
S60x6Female tank connection
100mmOverall adapter length
3 optionsBSP female outlet sizes
360°Swivel collar
Overall length, rather than extra projection
The adapter measures 100mm from end to end, including the large collar and smaller outlet. This is the complete fitting length, not an additional 100mm beyond the tank thread once fitted.
Part of the adapter overlaps the tank outlet when connected, so the clearance gained depends on the valve, thread engagement and any recess around it. Check the available space for the next fitting and its handle before ordering.

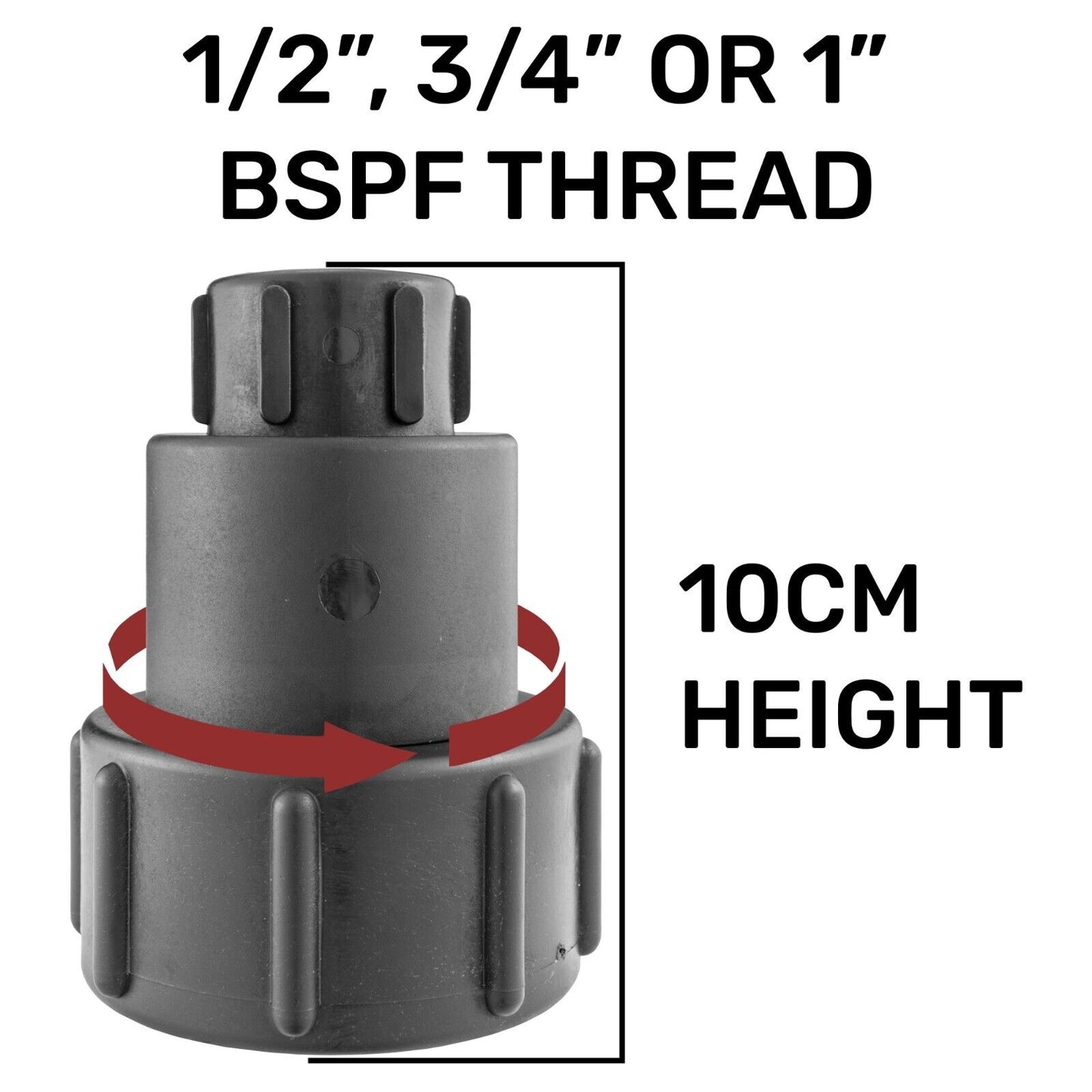

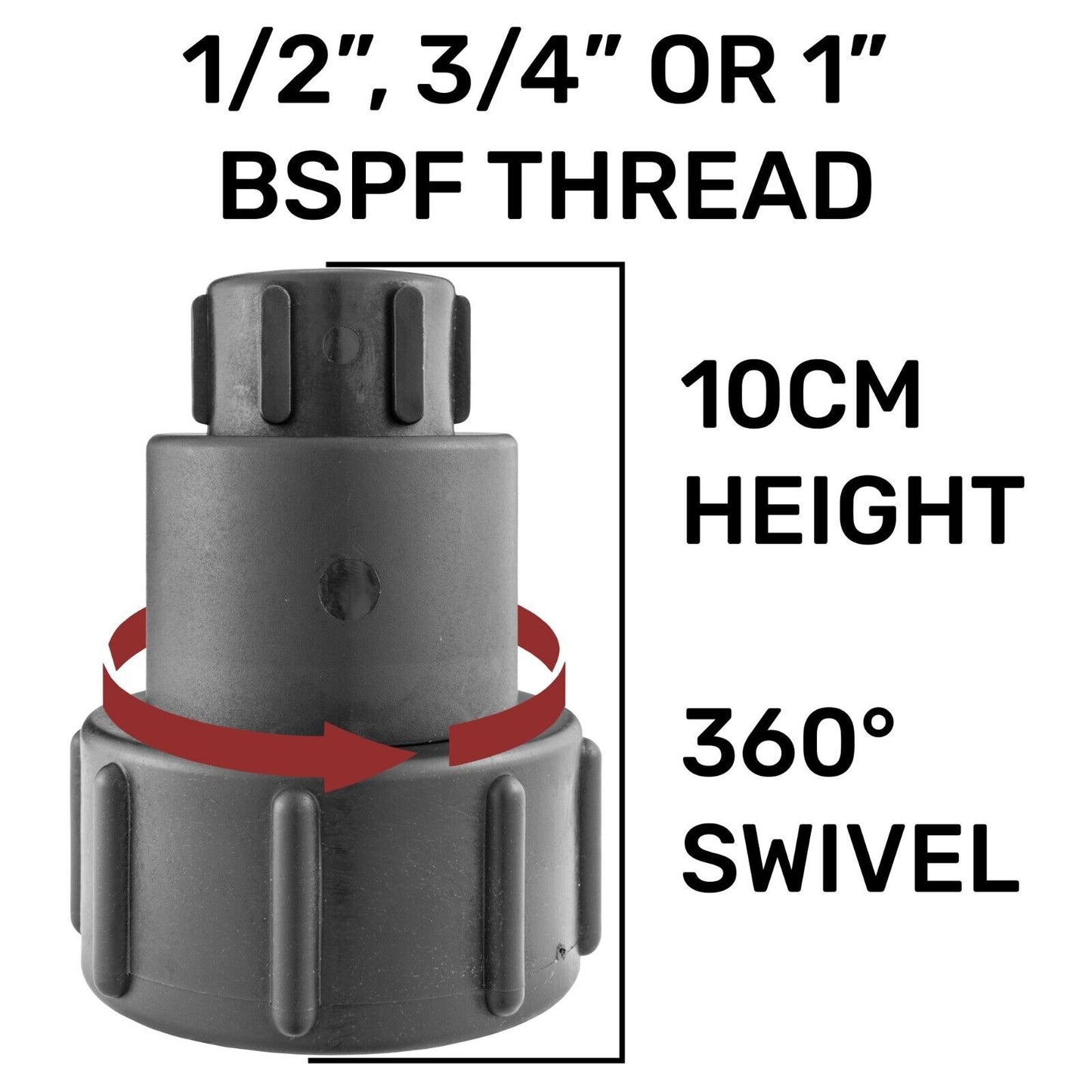

The genuine side-profile photograph shows the large swivel collar, extended body and smaller BSP end. Support any attached hose or tap so its weight and movement are not carried entirely by the tank connection.

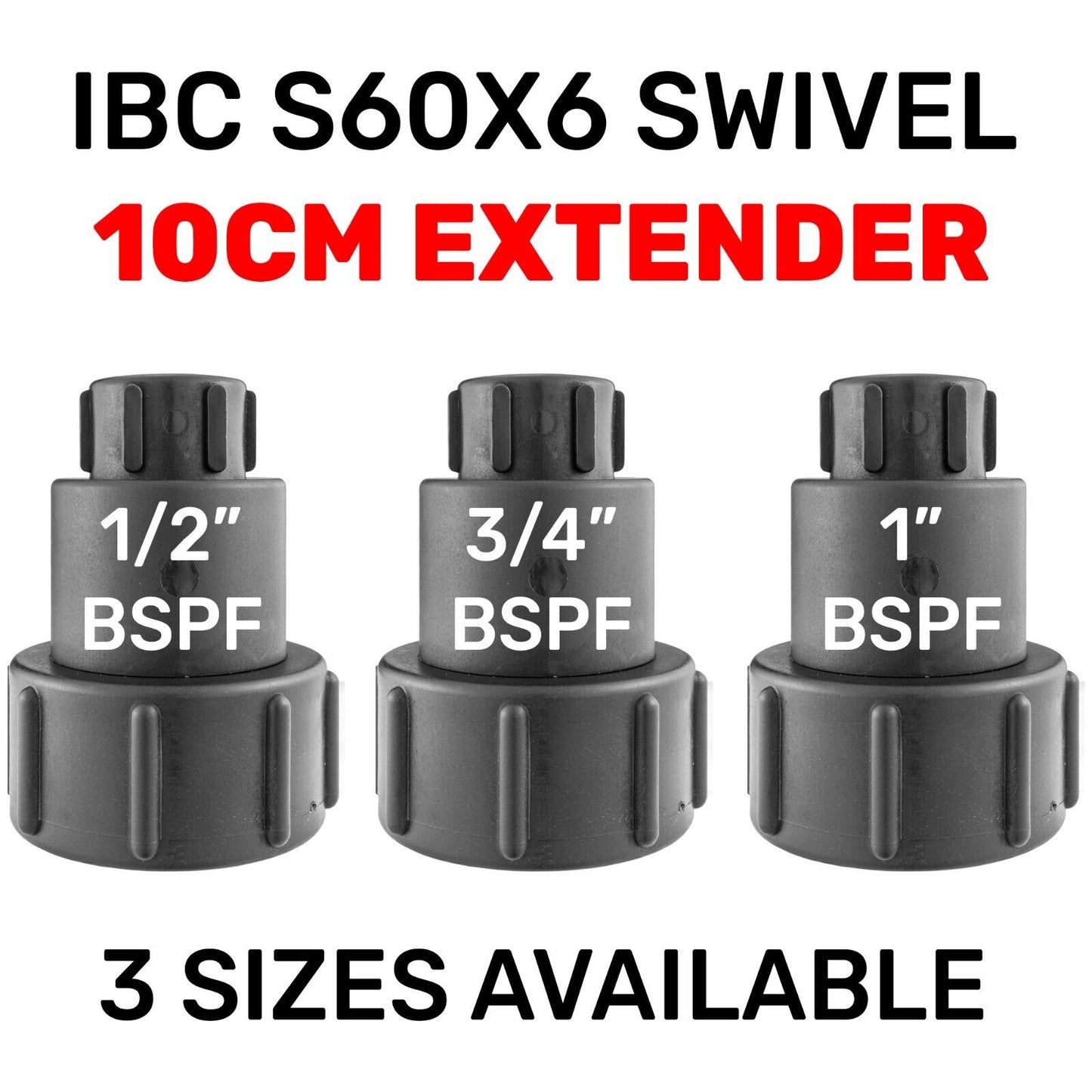

Choose the BSP outlet to match your fitting
¾-inch BSP female
Connects to a matching ¾-inch BSP male fitting. Its mating male thread measures approximately 26.4mm across the outer crests.
1-inch BSP female
Connects to a matching 1-inch BSP male fitting. Its mating male thread measures approximately 33.3mm across the outer crests.
All three options have the same S60x6 tank-side connection. These are threaded outlets, not hose barbs or push-fit hose connectors; choose by the mating thread, not the hose diameter.
Fitting the extension
Will this fit any IBC tank?
No. The tank side needs a matching male S60x6 coarse thread. Check the outlet's thread diameter and pitch, sealing face and surrounding clearance. Other IBC thread sizes and fine BSP threads are not interchangeable just because the fitting looks similar.
Does the swivel turn the water on and off?
No. The swivel collar is a fitting feature, not a valve. Keep flow control at the tank valve or a suitable separate tap. Isolate the supply before fitting or adjusting connections, use the sealing method appropriate to each joint, then check the assembly before use.
Product information & technical details
| SKU | IBC-EX-S60X6-12BSPF-001[#ML] |
|---|---|
| Product type | |
| Length | 100mm overall |
| BSP thread size | 1/2", 3/4", 1" |
| Thread gender | Female |
| IBC thread size | S60X6 (2") |
|---|---|
| Colour | Black |
| Material | Plastic |
| Swivel | 360° tank-side collar for fitting and alignment. |
| Supplied item | One extended adapter with the selected BSP female outlet; tank, valve and additional fittings excluded. |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
