Description
A threaded take-off from your irrigation line
Connect a branch without changing the direction of the main tube run.

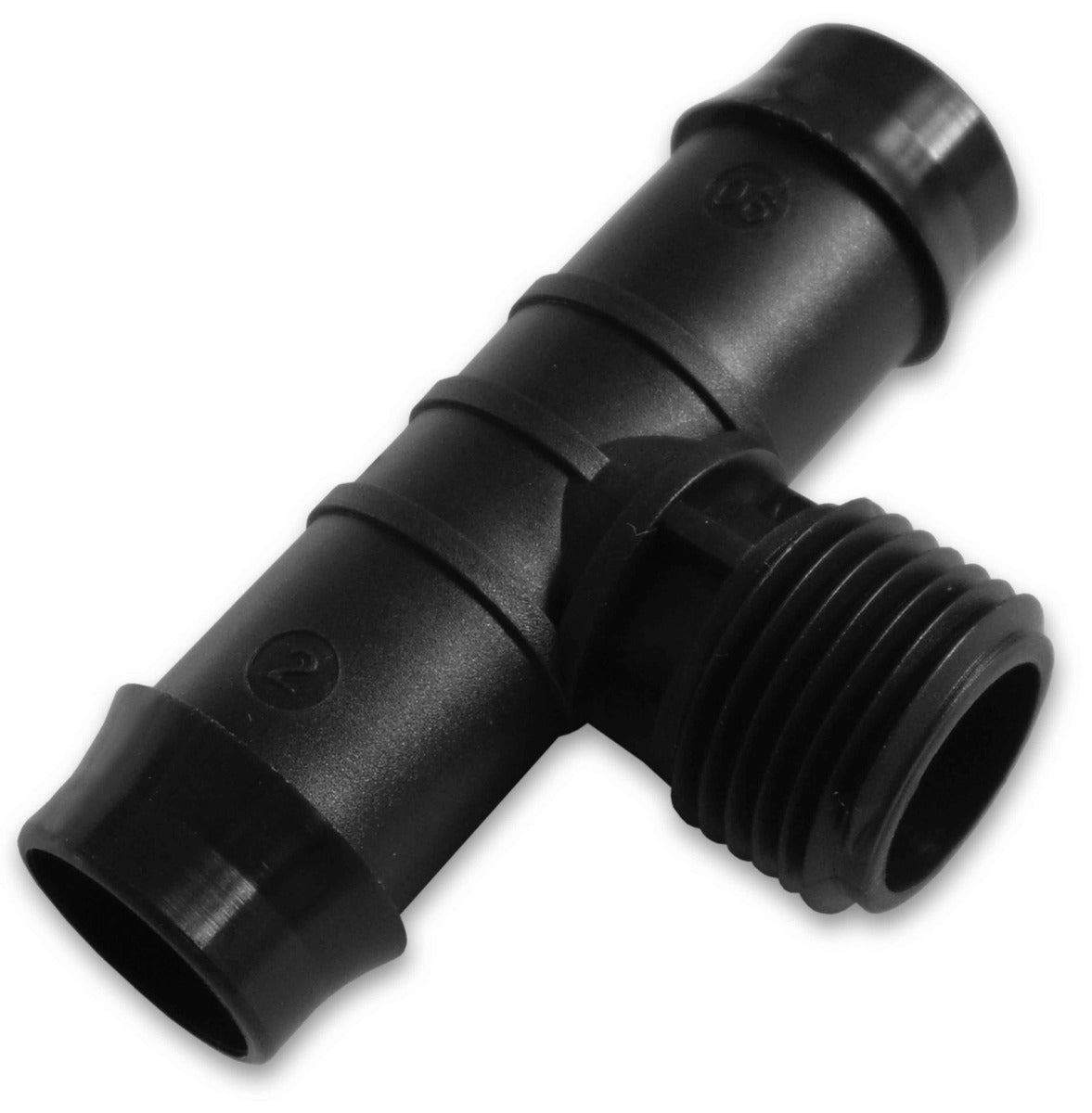

The Antelco 45235 threaded tee has two opposite 25mm barbed tails and a ¾″ BSP male side branch. It gives you a place to connect a suitable female-threaded riser, valve or adapter while joining the main-line tubing on either side.
One tee supplied. The branch adapter, tubes and clamps in the installation example are sold separately.
Two tube connections and one threaded outlet
Each main-line tail pushes inside matching 25mm-bore LDPE tube. The retaining barb sits beneath the tube, with a suitable clamp holding the tube over the fitting. The side branch uses a screw thread instead.
- Main line: check the tube's internal diameter and wall thickness. A 25mm outside-diameter pressure pipe is a different connection system.
- Branch: match the ¾″ BSP male thread to a compatible female fitting and follow its sealing requirements.
- Outdoor use: the polypropylene body is UV stabilised and intended for low-pressure irrigation, up to 300kPa (3bar).
The tee has no moving parts. It creates a junction rather than setting a flow rate or balancing the water between outlets.
Plan the branch before cutting the line
Choose the branch fitting
Allow room for the riser, valve or adapter and any pipe bend. Support the connected parts so their weight does not pull the tee or main tube sideways.
Fit all three connections
Isolate and depressurise the supply. Join the threaded component using its specified sealing method, then seat both LDPE tubes fully over the barbed tails and secure them with suitable clamps.
Check the complete run
Keep every component within its pressure rating. Restore water gradually and inspect both tube joints and the threaded branch. Close or cap an unused branch with a suitable separate fitting before use.
Choosing your threaded tee
Does the tee regulate or shut off the water?
No. It is a fixed junction with two barbed ends and one threaded branch. Add a suitable valve if the branch needs on/off control or adjustment; the tee does not set a flow split.
Can I leave the threaded branch open?
No. Water can leave through an open branch. Connect the intended component or fit a compatible separate cap before turning on the supply. No cap or valve is included.
Will it fit pipe labelled 25mm outside diameter?
Do not select it from that measurement alone. The barbed tails fit matching LDPE tube with a 25mm internal bore. Check your tube specification; rigid pressure pipe sold by outside diameter needs its own compatible fittings.
What do I receive, and which clips should I choose?
You receive one Antelco 45235 black threaded tee. Choose retaining clips to suit the actual outside diameter of your tube when fitted, not just its nominal bore. The installation image uses ratchet clamps as an example; clamps, tubing and branch components are separate purchases.
Product information & technical details
| SKU | A45235-TEE25B-34BSPM001 |
|---|---|
| Product type | |
| BSP thread size | 3/4" |
| Thread gender | Male |
| Barb size | 25mm (1") |
| Colour | Black |
| Material | Plastic |
| Brand | Antelco |
|---|---|
| Model | 45235 |
| Port arrangement | Two inline barbed tails; one perpendicular male threaded branch |
| Tube compatibility | 25mm internal-diameter LDPE tubing |
| Operating pressure | Up to 300kPa (3bar), low-pressure irrigation |
| Material treatment | UV stabilised |
| Pack contents | One black threaded tee |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
