Description
Adapt your irrigation tube to a threaded fitting

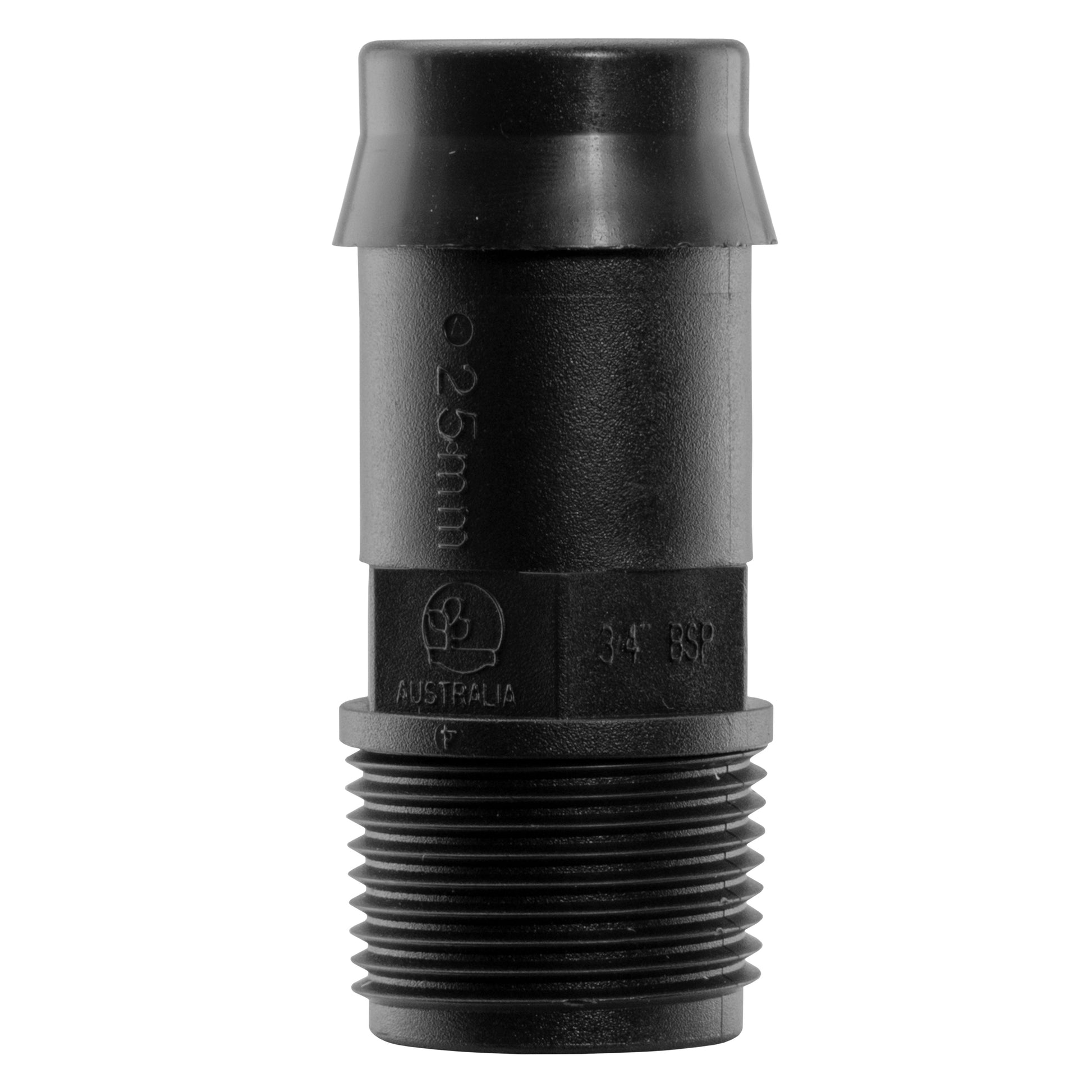

The Antelco 45325 straight director combines a 25mm barb with a ¾-inch BSP male thread, connecting compatible LDPE irrigation tubing to a matching female-threaded valve or fitting.
One black plastic adapter supplied. Tube, valve and installation accessories sold separately.
Match the tube and thread independently
The barbed end is intended for compatible LDPE irrigation tubing. Select the tube from its fitting specification and dimensions, rather than treating every pipe labelled 1 inch or 25mm as interchangeable.
The external thread needs a ¾-inch BSP female connection. The ¾-inch designation is a nominal pipe-thread size; it is separate from the 25mm tube connection. A male-threaded tap outlet needs a different mating arrangement.
Use the tube retention and thread sealing method appropriate to the receiving components. Seat the tube fully, support the pipe so it does not strain the joint and check the assembled connection with the water opened gradually.
Three checks for the installation
Choose the mating components before assembling the connection.
The tube
Use LDPE tube intended for this barbed fitting. Check its bore, wall and condition, and select any required retaining clamp for the actual tube outside diameter.
The threaded component
Check the female BSP size and sealing arrangement. Align the threads carefully and avoid forcing or overtightening the plastic fitting.
The water supply
Operate within 300kPa (3 bar) and any lower limit elsewhere in the system. Turn off the supply and release pressure before maintenance or disconnection.
Questions about the Antelco director
Does it fit any pipe marked 25mm or 1 inch?
No. This is a barbed director for compatible LDPE irrigation tubing. Different pipe systems use different sizing conventions and connection methods. Check the tube's fitting specification, bore and wall dimensions before ordering.
Does the adapter control water pressure?
No. It connects tube to a threaded fitting. Antelco specifies a maximum operating pressure of 300kPa (3 bar) for the director range. Any required pressure regulation is separate, and the lowest-rated component governs the complete installation.
What is included, and where can I check the manufacturer details?
One Antelco 45325 straight director: 25mm barb to ¾-inch BSP male thread. Tube, valve, clamps and sealing materials are not included. The Antelco directors datasheet (PDF) lists the part and range specifications.
Product information & technical details
| SKU | A45325-STR25B-34BSPM001 |
|---|---|
| Product type | |
| BSP thread size | 3/4" |
| Thread gender | Male |
| Barb size | 25mm (1") |
| Colour | Black |
| Material | Plastic |
| Manufacturer | Antelco |
|---|---|
| Manufacturer reference | 45325 |
| Compatible tubing material | Low-density polyethylene (LDPE) |
| Maximum operating pressure | 300kPa (3 bar) |
| UV-stabilised material | Yes |
| Quantity supplied | One straight director |
| Tubing, valve and clamps included | No |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
