Description
PE pond liner and underlay in one bundle

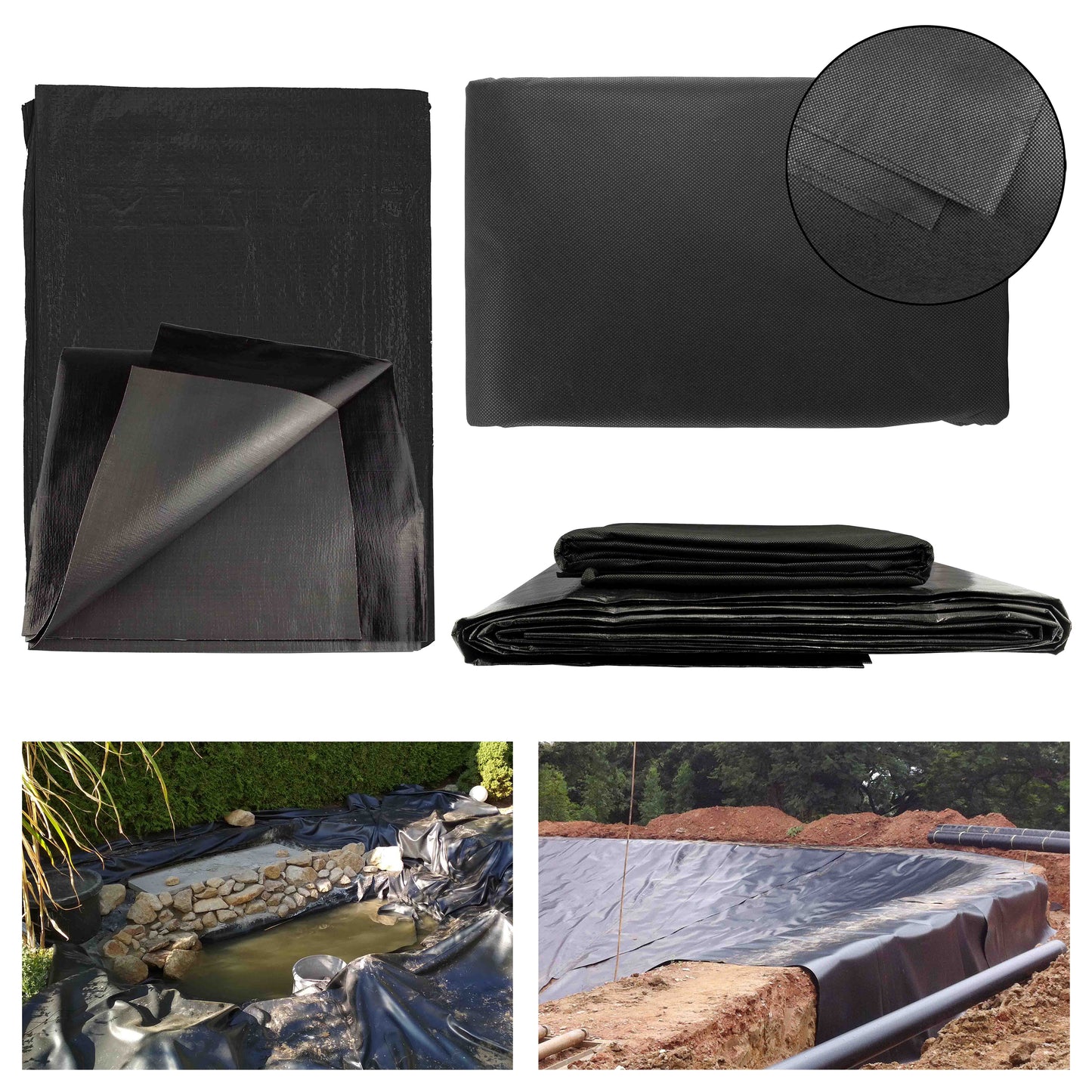

A nominal 1.5m × 5m black and grey 200gsm polyethylene liner, supplied with 50gsm fabric underlay for the layer beneath. The flexible sheet provides a nominal 7.5m² of flat liner material.
One liner with fabric underlay included.
Check the material and both contour measurements before ordering. This is a PE bundle rather than an EPDM rubber liner.
Make sure the narrow side reaches far enough
The 1.5m dimension has to reach down into the pond, across the base and over the edges. It is not a measurement of the water surface width. Shelves and changes in level also use some of the sheet.
Measure the longest and widest routes along the actual contours and add the material for your perimeter finish. Compare both with the 1.5m × 5m liner and account for its ±5% cut-size tolerance. Flat area alone cannot confirm the fit.
Prepare the pond for both layers
The flexible PE is UV-resistant for outdoor pond use. Place the included fabric beneath it after clearing and smoothing the supporting surfaces.
Remove sharp objects
Clear stones, roots and debris from the base, sides and shelves. Underlay does not replace this preparation.
Arrange the fabric
Plan the coverage and any overlaps before positioning the liner. Assess whether the actual ground conditions need additional protection.
Fit the liner gently
Ease it into the contours without stretching it tight across gaps. Keep enough material for the edges and check before filling.
Know what the two GSM figures describe
The bundle supplies one nominal 1.5m × 5m 200gsm PE liner and 50gsm fabric underlay. The black-faced liner has a grey reverse; the fabric forms a distinct protective layer beneath it.
GSM means grams per square metre and applies separately to each material. The figures are not thickness measurements or a combined liner rating. Pond edging, plants, stones and other installation accessories are not included.
Questions before fitting
Is the fabric underlay included?
Yes. This is the liner-and-underlay bundle, with 50gsm fabric included. Plan its arrangement and coverage for your excavation before fitting the liner.
Will the liner fit a 1.5m by 5m water surface?
No. Those are the nominal flat sheet dimensions. Some of each dimension is needed for depth, sides and the perimeter finish. Measure through the actual pond shape to choose a size.
Does the fabric guarantee protection on any ground?
No. Remove sharp objects and prepare the supporting surfaces. The 50gsm fabric is a lightweight layer, so assess any further protection your ground conditions need.
Product information & technical details
| SKU | PLB1.5X5-001+ |
|---|---|
| Product type | |
| Size | 1.5m x 5m |
| Length | 5m |
| Width | 1.5m |
| GSM | 200gsm |
| Colour | Black, Grey |
|---|---|
| Material | Polyethylene (PE) |
| Nominal flat liner area | 7.5m² |
| Included underlay | 1 × 3m × 3m sheet of 50gsm fabric; separate pieces, allow for overlaps. |
| Cut-size tolerance | ±5% |
