Description
Give your irrigation line a neater turn
Take the hose in the direction your layout needs, without asking it to make a sharp bend straight out of the threaded port.

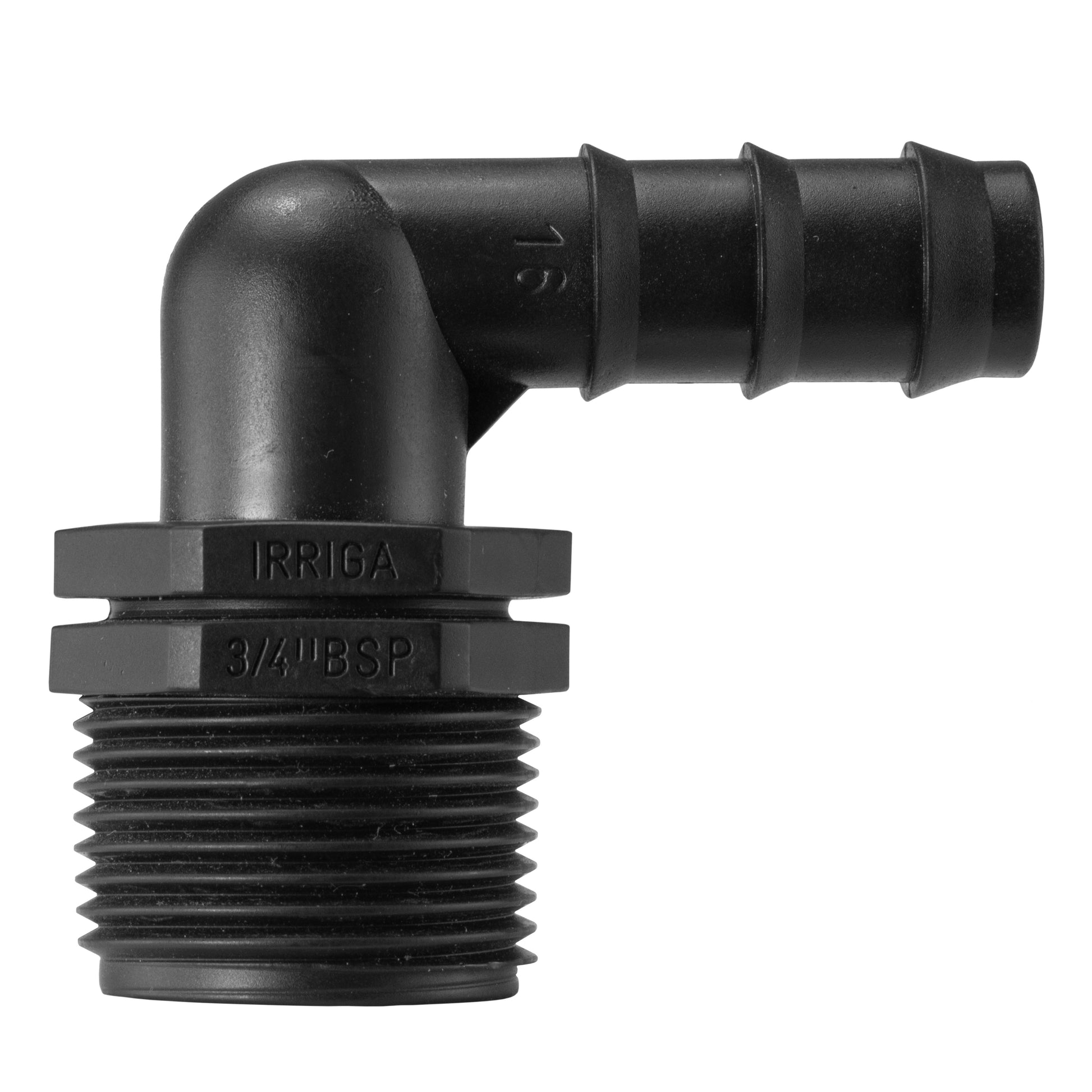

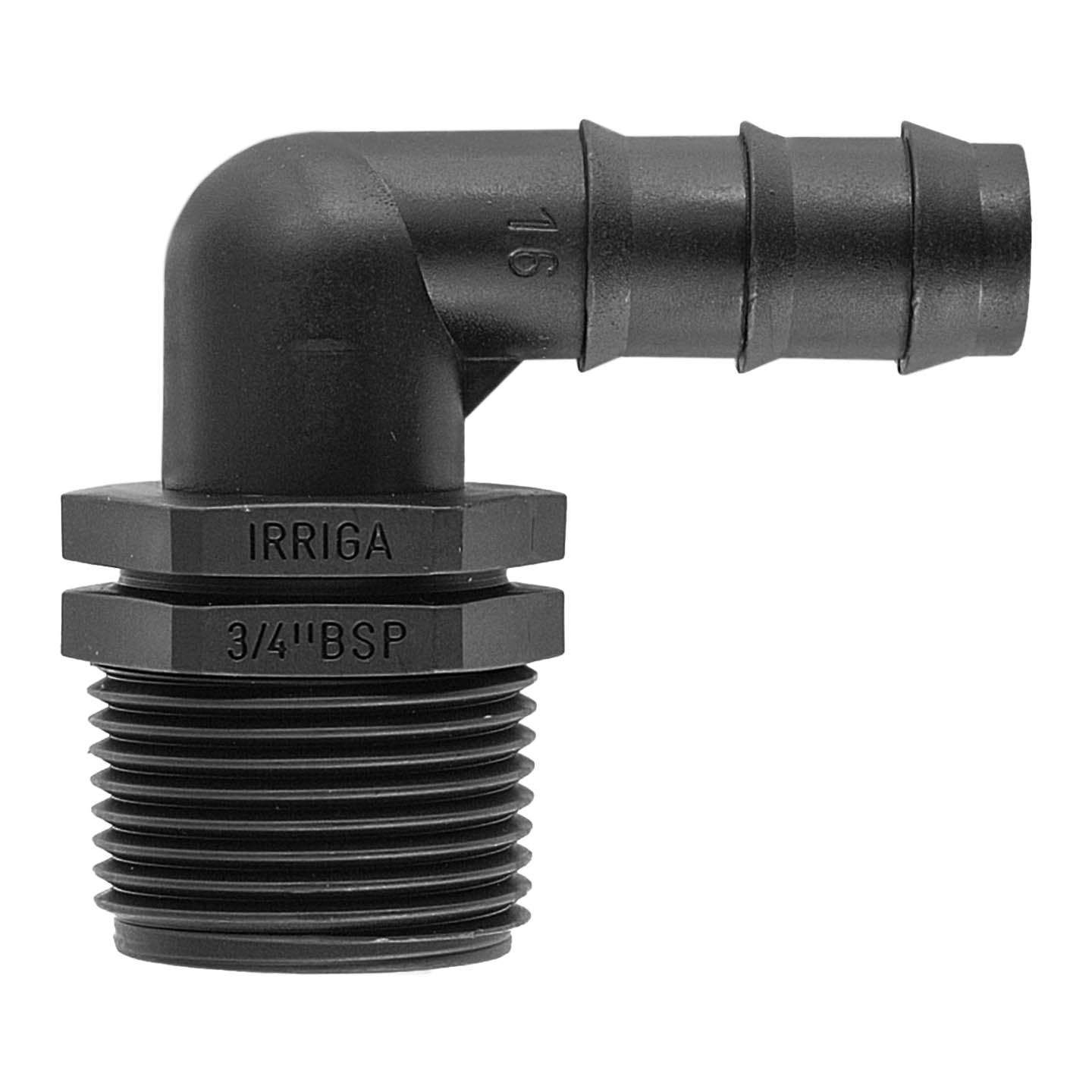

This 90° irrigation elbow combines a ¾″ BSP male thread with a ½″ barbed hose tail. It changes the connection direction in one compact fitting.
One elbow supplied. The valve, hose, clip and garden setting shown are not included.
Choose the bend and both connection sizes
The right-angle body redirects the hose where it joins a threaded component. Plan enough space around the fitting to insert the tube fully and support its onward route.
- Threaded end: the visible external thread is ¾″ BSP male. It fits a matching female port, rather than screwing directly onto another male outlet.
- Hose end: the barb goes inside matching approximately 13mm-bore tube. In the familiar 13/16mm irrigation size, 16mm describes the tube's outside diameter.
- Shoulder: the two hexagonal flats provide a grip between the bend and threaded end. They are part of the fixed fitting, not a valve handle.
BSP is a nominal thread designation. It is separate from the hose-bore measurement, so check the threaded component as well as the tube before choosing.
Plan the direction before connecting the hose
Check the port and clearance
Isolate and depressurise the supply. Confirm a matching ¾″ BSP female port and a compatible sealing arrangement. Allow room for the elbow, fully inserted hose and any retaining clip.
Fit the elbow without forcing it
Start the thread straight by hand and tighten appropriately for the mating components. Do not overtighten the plastic body or back off a joint that relies on thread tightening simply to make the hose point another way.
Seat and support the tube
Push the tube over the complete barbed tail towards the bend and fit a suitable clip if required by the hose system. Support the hose without twist or side-load. Restore water gradually within your system’s ratings and inspect both joints.
Choosing your irrigation elbow
Is the threaded end male or female?
It is ¾″ BSP male: the thread is on the outside of the fitting. The elbow needs a matching female port. The other end is a ½″ hose barb.
Why use an elbow instead of a straight adapter?
An elbow turns the connection through 90° at the port. This can suit layouts where the hose needs to follow a bed edge or avoid an obstruction. Leave a relaxed hose route beyond the fitting and check the available clearance.
Does the 16mm marking mean a 16mm hose bore?
No. The common 13/16mm irrigation reference means approximately 13mm inside and 16mm outside the tube. This barb fits inside matching ½″/13mm-bore hose; check its wall type as well as its dimensions.
Does it click on or turn the water off?
No. The hose pushes over insertion barbs rather than clicking onto a garden-hose plug, and the elbow has an open passage with no shut-off mechanism. Clips, seals and any valve are separate items selected for the system.
Product information & technical details
| SKU | ELB16B34BSPM001 |
|---|---|
| Product type | |
| BSP thread size | 3/4" |
| Thread gender | Male |
| Barb size | 12.7mm (1/2") |
| Colour | Black |
| Material | Plastic |
|---|---|
| Bend angle | 90° |
| Connection layout | One barbed hose tail and one male threaded end, at right angles |
| Tube sizing reference | 13/16mm irrigation tube: approximately 13mm internal, 16mm external diameter |
| Pack contents | One black plastic irrigation elbow |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
