Description
A direct route from a threaded port to your irrigation tube
Keep the transition compact when taking a watering line from a compatible valve or manifold.

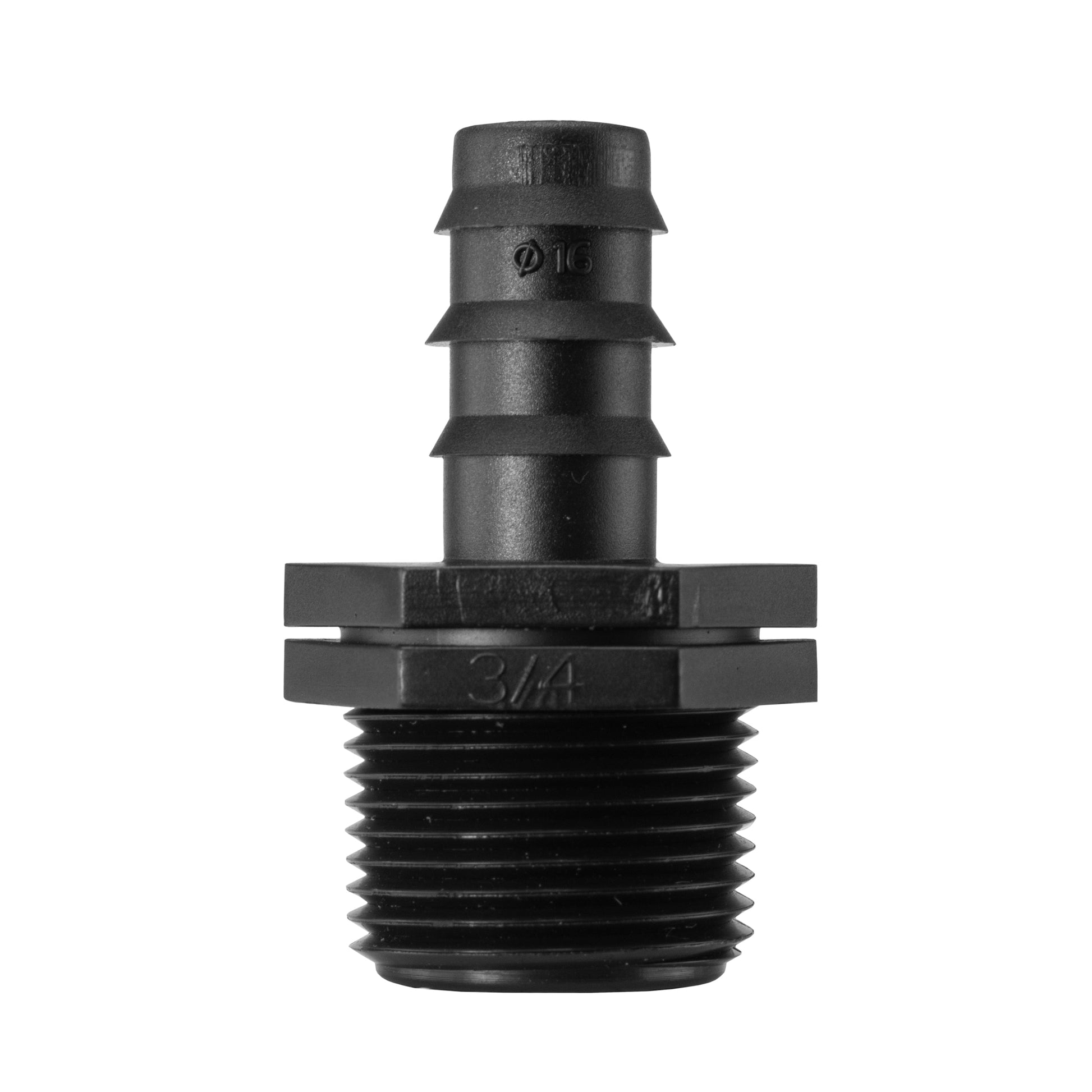

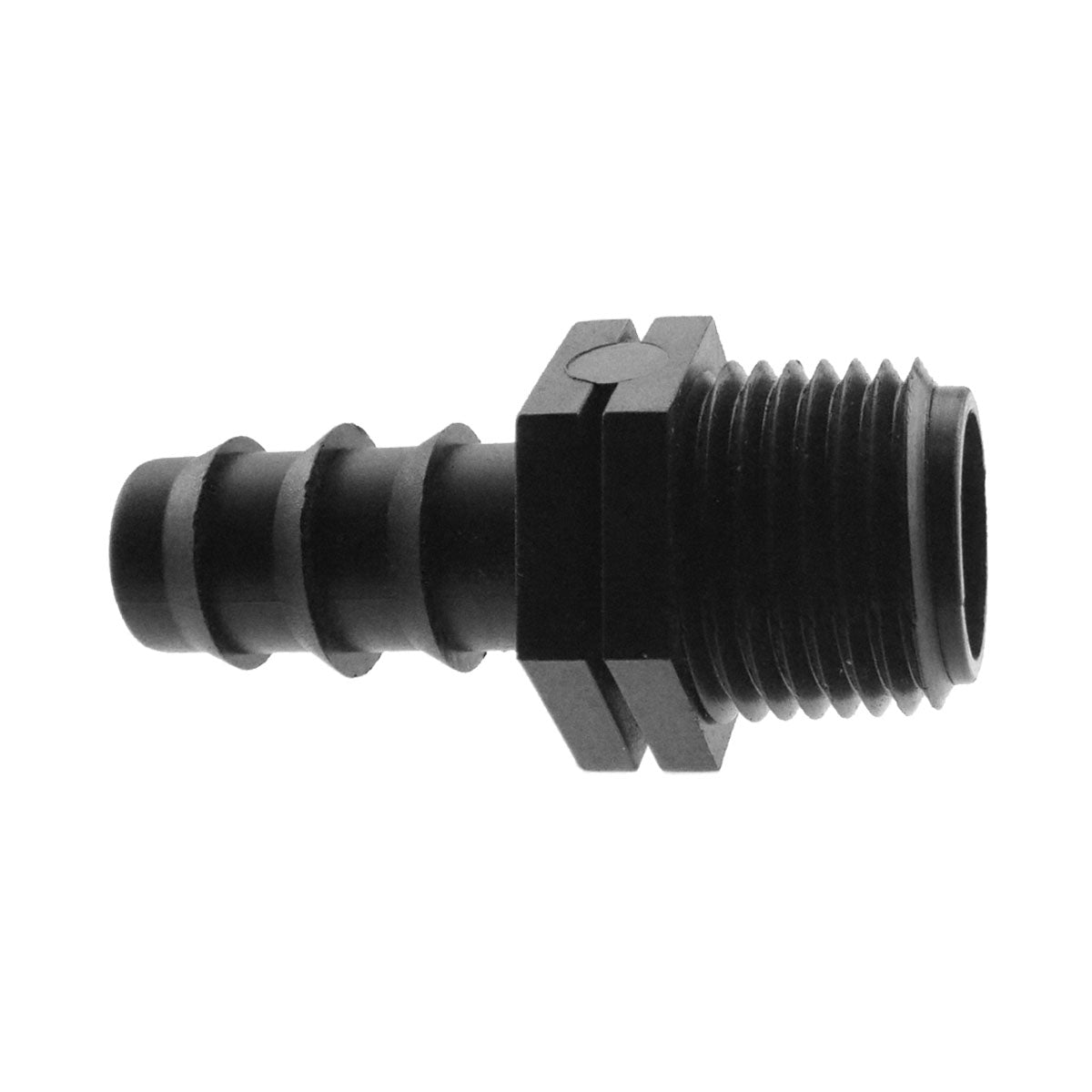

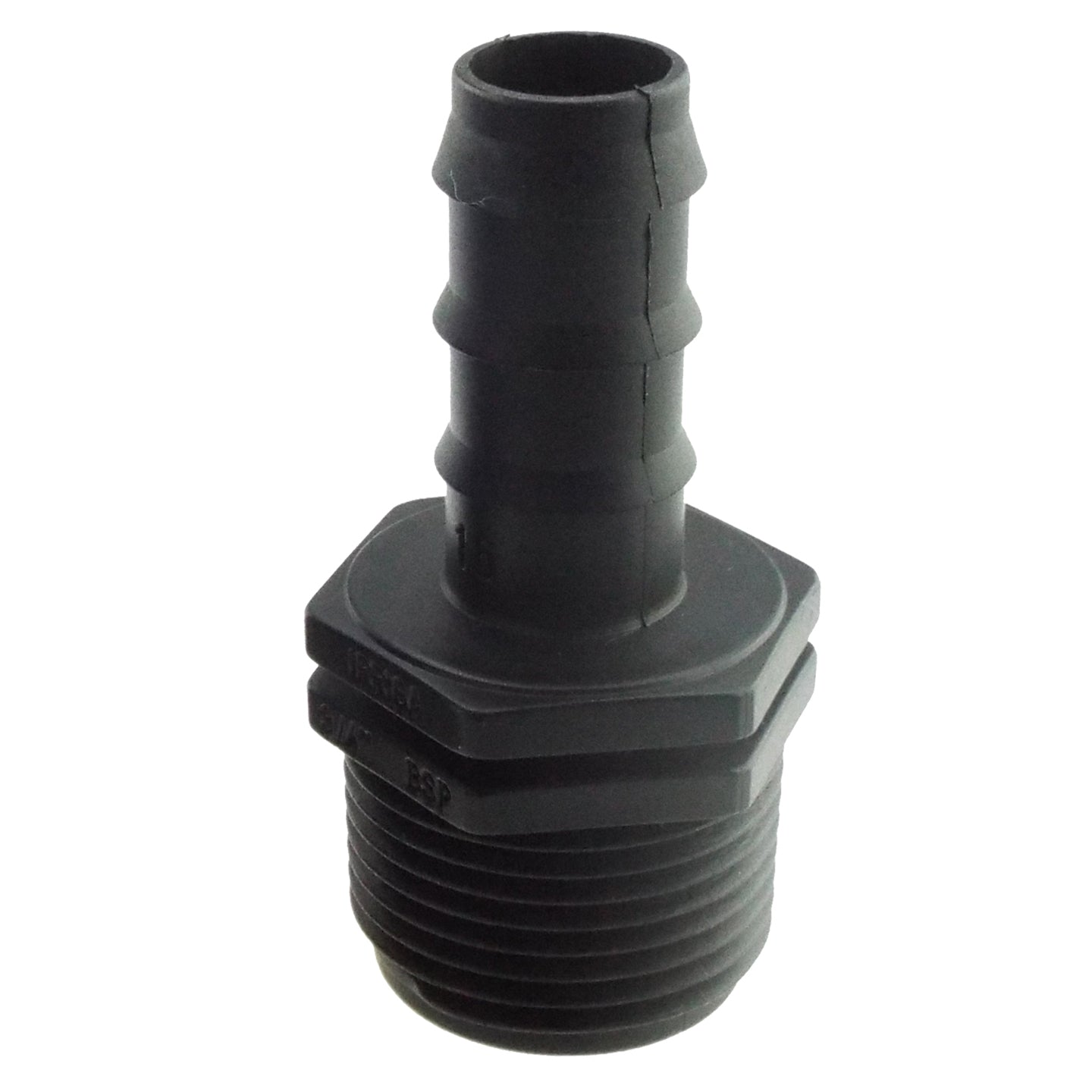

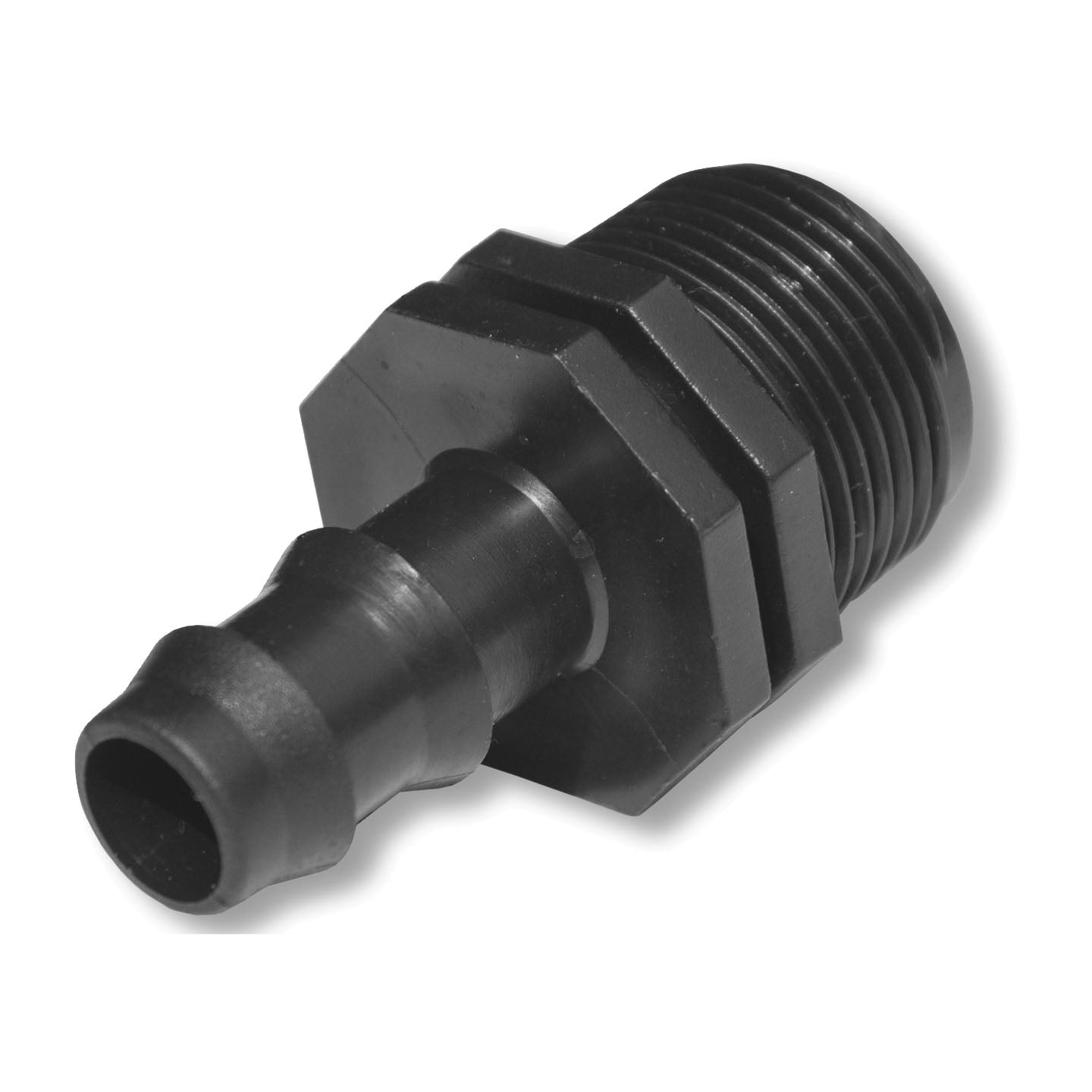

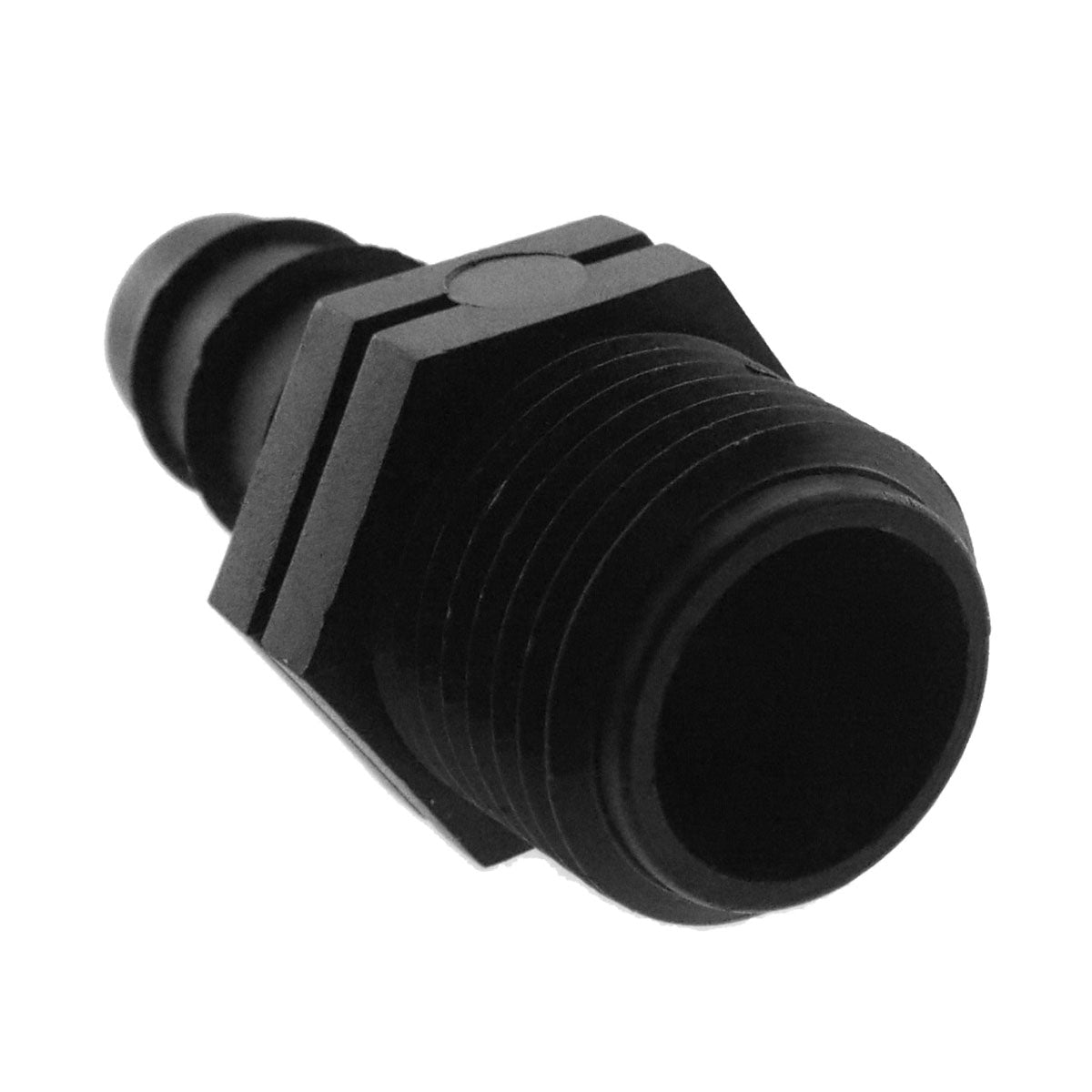

This adapter pairs a ¾″ BSP male thread with a ½″ hose barb. The thread enters the female port; flexible tube fits over the barbed tail.
One adapter supplied. Manifold, tubing, clip and garden materials in the example are not included.
Read the hose marking and thread marking separately
The 16mm irrigation reference relates to tubing commonly described as 13/16mm: approximately 13mm internal and 16mm external diameter. The tail pushes inside that tube. It is not a compression socket gripping the outside of rigid pipe.
The ¾″ marking identifies the nominal BSP threaded end. Choose a matching ¾″ BSP female port; another male outlet will need a separate suitable female fitting.
The two hexagonal shoulders sit between the hose and thread. Hold the body here while fitting, without using the hose to turn or lever the adapter.
Assemble the two joints with care
Start with the threaded port
Turn off and depressurise the supply. Confirm the female fitting is the matching BSP size and select its required sealing method. Start the thread straight by hand, then tighten appropriately without forcing the plastic body.
Cover the full hose tail
Use a clean, square tube end and push it over all the barbs towards the shoulder. Fit a retaining clip if your hose system requires one. Choose the clip for the actual fitted outside diameter and tube wall rather than assuming every hose needs the same clamp.
Support the watering line
Leave a relaxed route for the tube so a tight bend or its weight does not load the threaded joint. Restore water gradually within the ratings of the system and inspect both connections before leaving it running.
Common fitting questions
Why is a ½″ hose fitting marked 16mm?
In the common 13/16mm irrigation convention, the tube has an approximately 13mm bore and 16mm outside diameter. The barb goes inside that tube. Match your hose specification and wall type; 16mm internal-diameter hose is a different size.
Will it connect directly to a male garden-tap outlet?
No. This adapter also has a male thread. Its ¾″ BSP end needs a matching female port or a separate female-threaded connector. It is not a click-on garden-hose plug.
Can I use it to stop or adjust the flow?
No. The adapter is a fixed open connection. Add a separate suitable valve if the line needs isolation or flow control.
Do I need to buy hose clips separately?
Clips are not included. Whether one is required, and which type to use, depends on your hose material, wall thickness, fitted outside diameter and system conditions. Follow the hose system's connection requirements rather than relying on the barb alone.
Product information & technical details
| SKU | STR16B34BSPM-001 |
|---|---|
| Product type | |
| BSP thread size | 3/4" |
| Thread gender | Male |
| Barb size | 12.7mm (1/2") |
| Colour | Black |
| Material | Plastic |
|---|---|
| Connection layout | Straight: one barbed hose tail and one male threaded end |
| Tube sizing reference | 13/16mm irrigation tube: approximately 13mm internal, 16mm external diameter |
| Grip feature | Double hexagonal shoulder |
| Pack contents | One straight irrigation hose-to-thread adapter |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
