Description
Start the irrigation line at your threaded outlet
Connect flexible watering tube to the male outlet on a compatible tap, valve or manifold.
The ¾″ BSP female collar connects at the supply end. At the other end, the ½″ barb fits inside matching irrigation hose, giving a compact straight-through transition.
One adapter supplied. The valve, hose, clip and garden setting in the illustration are not included.
A threaded collar at one end. A hose tail at the other.
The wide collar has an internal female thread, so it needs a matching ¾″ BSP male connection. It is not a click-on garden-hose socket.
The narrower tail pushes inside approximately ½″/13mm-bore tubing. In the familiar 13/16mm irrigation size, 16mm describes the outside of the tube. It does not mean that this barb fits a hose with a 16mm internal bore.
These are two different sizing systems: BSP describes the threaded connection, while the hose size describes the tube that fits over the barb. Check both ends of your installation when choosing the adapter.
The body has an open passage and no shut-off lever. Use a separate valve when you need to isolate the line.
Make the connection without straining the hose
Match the male outlet
Turn off and depressurise the water supply. Check that the mating outlet is ¾″ BSP male and has a suitable sealing face. Use the seal arrangement specified for the components; check that any required washer or seal is present and in good condition.
Fit the hose fully
Prepare a clean, square hose end and push it over the complete barbed tail towards the body shoulder. Add an appropriate retaining clip where the hose system requires one, selected from the actual fitted outside diameter.
Check the finished joint
Support the tubing so its weight or a tight bend does not pull on the plastic adapter. Restore water gradually within your system's ratings and inspect both connections. Avoid overtightening or treating the fitting as a moving hose swivel.
Before you choose your connector
Can I connect it to a ¾″ garden tap?
It needs a matching ¾″ BSP male outlet, so check the tap's actual thread and sealing face. Some taps use a different size or have another hose connector already attached. It will not connect directly to a female port.
Why does the hose size also say 16mm?
13/16mm is a common irrigation-tube reference: approximately 13mm internal and 16mm external diameter. The barb fits inside the tube, so match its bore as well as its wall material. It is not for a 16mm internal bore.
Is this an operating swivel or an automatic water stop?
No water-stop valve is built in, and the adapter should not be used as a continuously moving hose swivel. Route and support the hose without twist or side-load, and use a separate valve to turn off the supply.
What comes in the pack?

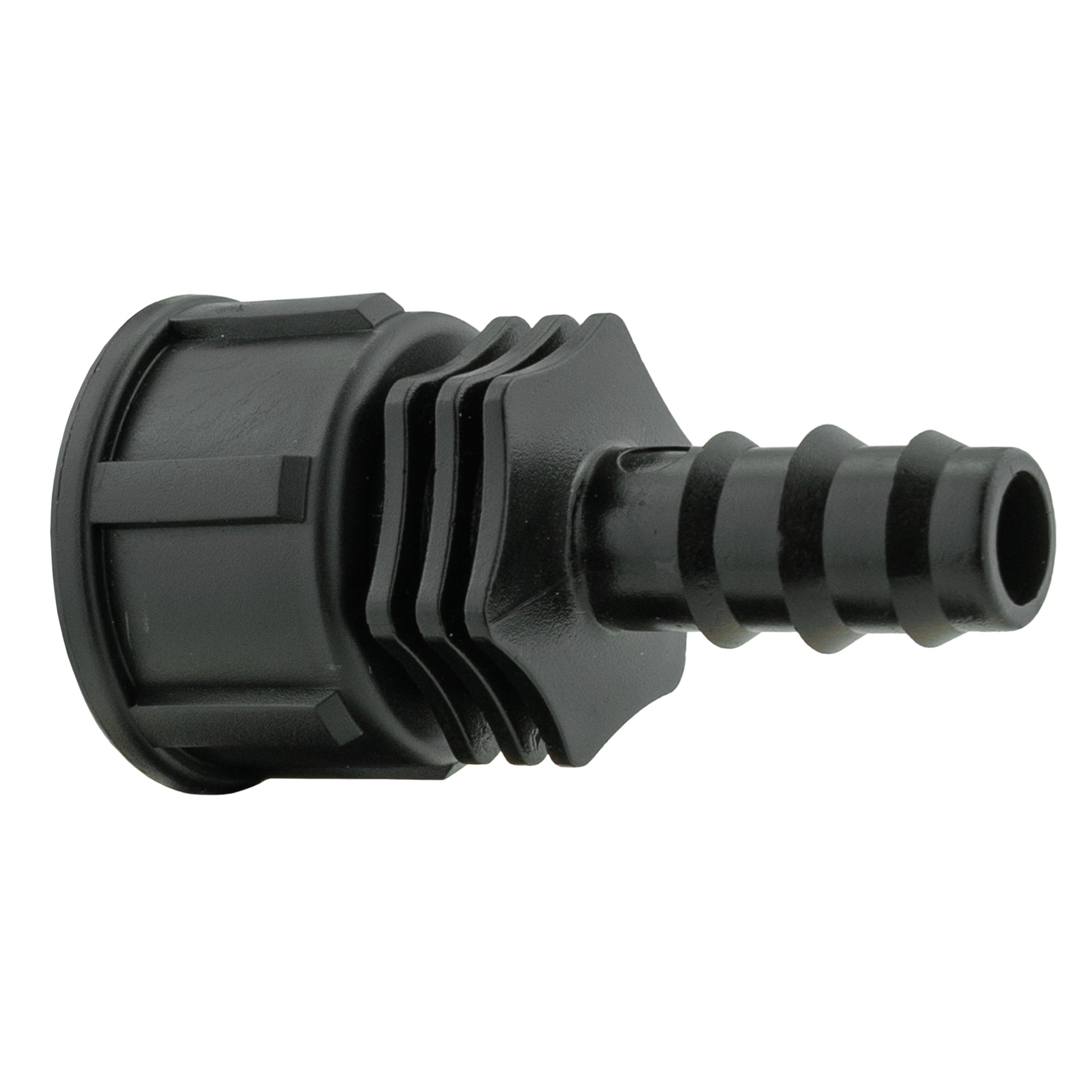

One black plastic adapter with a ½″ hose barb and ¾″ BSP female connection. The installed example includes a separate valve, hose and clip. Check the seals and retention required by your chosen components before assembly.
Product information & technical details
| SKU | STR16B34BSPF001 |
|---|---|
| Product type | |
| BSP thread size | 3/4" |
| Thread gender | Female |
| Barb size | 12.7mm (1/2") |
| Colour | Black |
| Material | Plastic |
|---|---|
| Connection layout | Straight: one barbed hose tail and one female threaded collar |
| Tube sizing reference | 13/16mm irrigation tube: approximately 13mm internal, 16mm external diameter |
| Grip features | Ribbed collar and moulded body fins |
| Pack contents | One straight irrigation hose-to-thread adapter |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
