Description
Connect your watering line to a threaded outlet
A small adapter makes the transition from a valve or manifold to flexible irrigation tube.

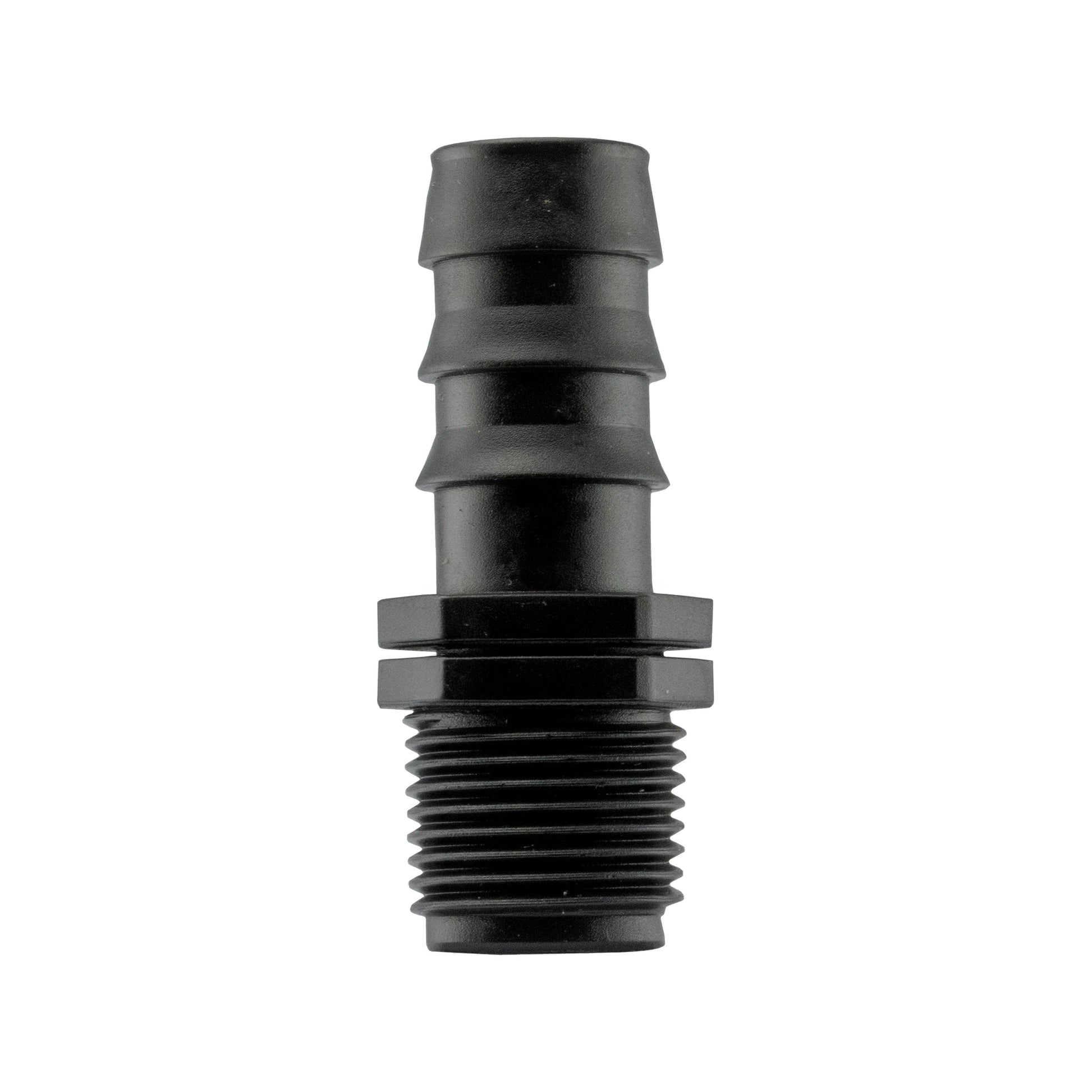

This ½″ barb × ½″ BSP male adapter has an open, straight-through passage. The male thread fits a matching female port; the barbed tail fits inside the hose.
One adapter supplied. The valve, hose, clip and garden setting shown are not included.
Match each end to the part it connects
The two ½″ sizes describe different interfaces. The hose fits over the barb, while the threaded end screws inside a female BSP port.
- Hose side: choose matching approximately 13mm-bore tubing. In the familiar 13/16mm irrigation convention, 16mm is the tube's outside diameter.
- Thread side: choose a ½″ BSP female fitting. BSP is a nominal thread designation, so the outside of the male thread does not measure 12.7mm.
- Body: the double hexagonal shoulder separates the two connections. This is a fixed adapter, with no valve or shut-off mechanism.
It is a barbed hose connection, rather than a compression fitting for rigid pipe or a click-on garden-hose plug.
A tidy connection starts with the right fit
Prepare the threaded joint
Turn off and depressurise the supply. Confirm that the female port is the matching BSP size and use the sealing method specified for the mating components. Start the thread squarely by hand.
Seat and retain the hose
Push the hose fully over the barbed tail towards the shoulder. Use a suitable retaining clip where required by the hose system, selected for the fitted outside diameter and wall material.
Support and inspect
Route the tube without pulling sideways on the plastic fitting. Restore water gradually within the ratings of your system and inspect both joints. Avoid overtightening or using the hose as a lever.
Choosing the right irrigation adapter
Is this for 16mm irrigation pipe or ½″ hose?
Both descriptions can refer to the same nominal irrigation size: approximately 13mm internal and 16mm external diameter. Match the hose bore and wall type to the barb. A hose with a 16mm internal bore is a different size.
Will it screw directly onto a garden tap?
Only if the mating connection is a suitable ½″ BSP female port. This adapter has an external male thread, so it will not screw directly onto another male threaded outlet. Check the actual connection on your tap, valve or manifold.
Does the adapter turn the water on and off?
No. It provides a fixed open connection between hose and a threaded component. Use a separate suitable valve when you need to isolate or control the watering line.
Are a clip or valve included?
No. The pack contains one black plastic adapter. Tubing, hose clips, valves and sealing materials are separate; select them for your hose dimensions, threaded fitting and operating conditions.
Product information & technical details
| SKU | STR16B12BSPM001 |
|---|---|
| Product type | |
| BSP thread size | 1/2" |
| Thread gender | Male |
| Barb size | 12.7mm (1/2") |
| Colour | Black |
| Material | Plastic |
|---|---|
| Connection layout | Straight: one barbed tail and one male threaded end |
| Tube sizing reference | 13/16mm irrigation tube: approximately 13mm internal, 16mm external diameter |
| Fitting body | Black plastic with double hexagonal shoulder |
| Pack contents | One straight irrigation hose-to-thread adapter |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
