Description
A threaded outlet for your water butt

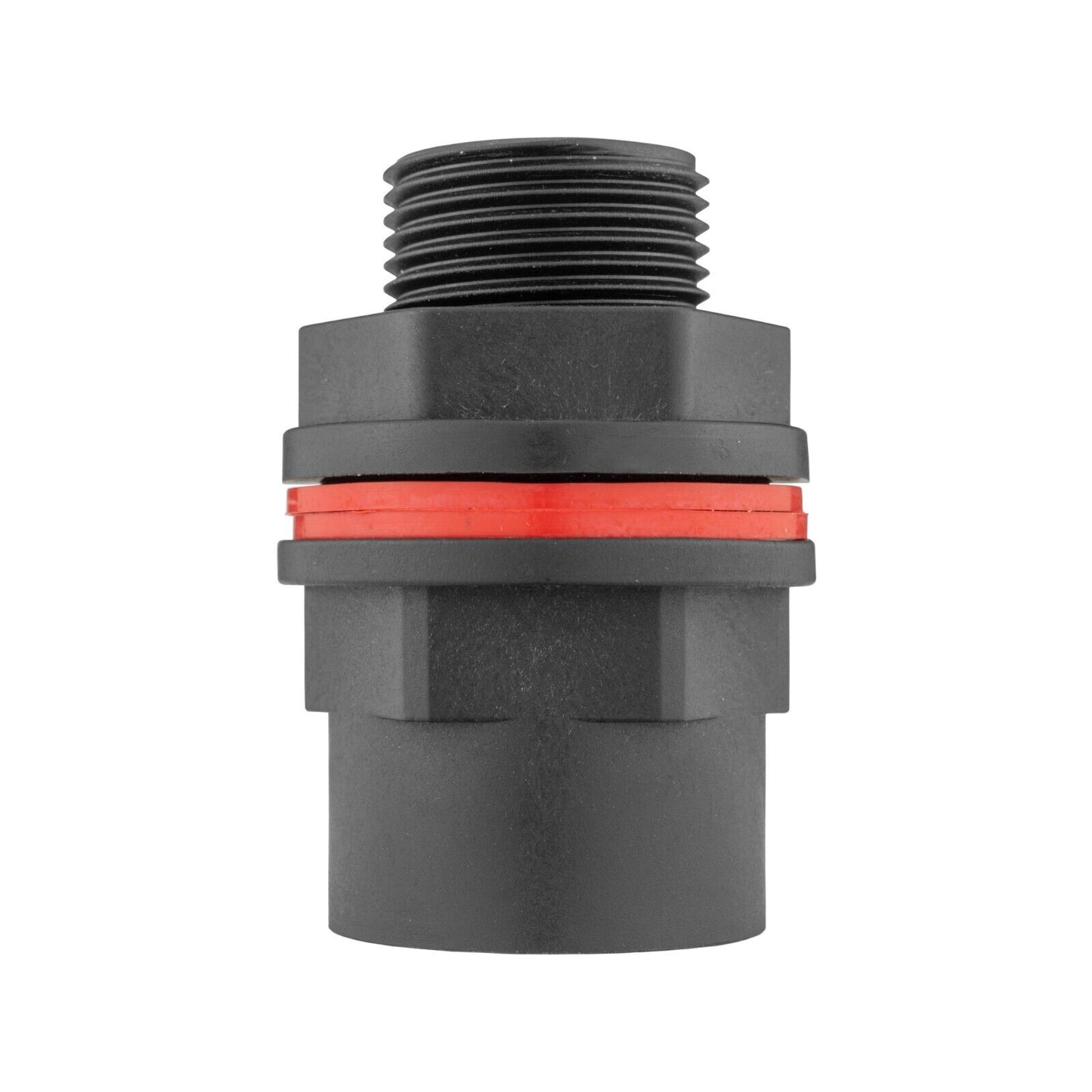

This black plastic 1/2-inch BSP tank adaptor provides a straight-through connection with an external male thread and an internal female outlet.
Use the male end with a suitable existing female thread, or use the supplied retaining nut and two sealing washers for through-wall mounting on a suitable container.
One adaptor set supplied. Tank, tap, hose and other fittings are separate.
Match the two threaded connections
The external male thread is the narrow threaded section. It can connect to a suitable female BSP tank outlet, or pass through a prepared opening when using the nut-and-washer mounting method.
The internal female thread is inside the socket at the other end. Choose a matching male BSP fitting for the outlet you need; a tap, valve or hose connector is not included.
The 1/2-inch BSP designation identifies the thread size. It does not tell you the hole diameter to drill, the tank-wall thickness it will suit or the length of thread available for your installation. Check those against the actual parts before fitting.
Choose the mounting method for your tank
Check the existing outlet and sealing surfaces before making any changes to the container.
Existing female thread
Where the container already has a suitable 1/2-inch BSP female connection, the adaptor can screw into it using its male end. Check thread engagement and the sealing arrangement for that connection.
Through the wall
For a suitable unthreaded opening, remove the retaining nut and one washer. Insert the adaptor, then refit the washer and nut inside the tank, with a washer on each side of the wall. Confirm the opening against the actual fitting before drilling.
Test with water
Check that the wall provides a suitable sealing surface and enough thread remains for the nut. Fit the separately chosen outlet component, then check the tank connection and outlet for leaks before leaving it in service.
The outlet stays available for your chosen fitting
This installation photo shows the female threaded socket exposed on a water butt. It provides the connection for a separately selected male BSP fitting.
The container shown is not included, and its installation does not establish the fit on every tank. Compare your wall, outlet position and access with the adaptor before starting.
Before fitting the tank adaptor
Are the male and female threads both half-inch BSP?
Yes. This version has an external 1/2-inch BSP male connection and an internal 1/2-inch BSP female outlet, as shown in the labelled product photo.
What hole size should I make?
Confirm the opening against the actual fitting and tank before cutting. The nominal 1/2-inch BSP designation is not a drilling measurement. Check wall thickness, sealing surface and nut clearance as well.
Where do the two washers go?
For through-wall mounting, one washer sits on each side of the tank wall and the retaining nut secures the fitting from inside. A screw-in installation uses a suitable existing female thread and needs its sealing arrangement checked separately.
Does it include a tap or hose connection?
No. The set contains one adaptor, one retaining nut and two sealing washers. Choose any tap, valve, hose connector or other fitting separately to match the female BSP outlet and your intended installation.
Product information & technical details
| SKU | BUTT12BSPM-F001 |
|---|---|
| Product type | |
| BSP thread size | 1/2" |
| Thread gender | Male, Female |
| Colour | Black |
| Material | Plastic |
| External connection | 1/2-inch BSP male |
|---|---|
| Internal outlet | 1/2-inch BSP female |
| Supplied parts | 1 adaptor, 1 retaining nut and 2 sealing washers |
| Mounting options | Suitable female thread or through-wall mounting |
| Pack quantity | 1 adaptor set |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
